Broadband Low Noise Amplifier

18 to 42 GHz, 28 dB Gain, 4.0 dB Noise Figure, 1.85 mm (F)
SKU:SBL-1834232840-VFVF-E3
Availability:IN STOCKPlease contact us if you need more units than what is available online.

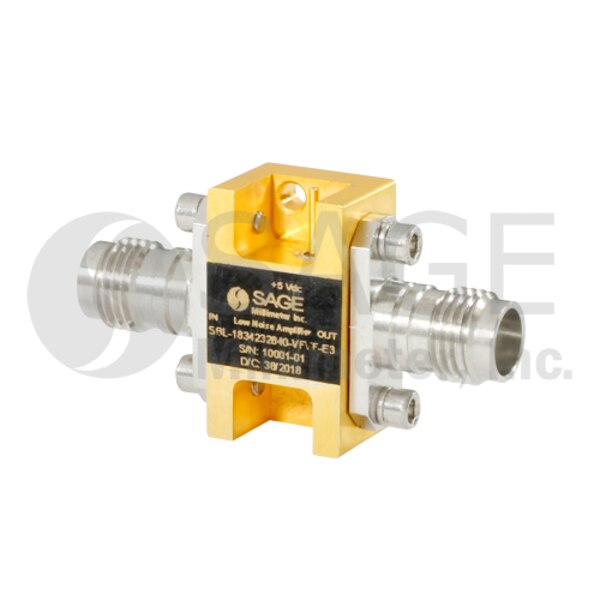

SBL-1834232840-VFVF-E3 is a low noise amplifier with a typical small signal gain of 28 dB and a nominal noise figure of 4 dB across the frequency range of 18 to 42 GHz. The DC power requirement for the amplifier is +5 VDC/240 mA. Due to the small package, the amplifier does not have a built-in regulator. The input and output port configurations are both female V connectors. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency42 GHz
Gain28 dB
Noise Figure4.0 dB
P1dB+14 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+5 VDC/240 mA
RF Input/Output1.85 mm (F)
