1.85 mm Coaxial Bandpass Filter

18 to 35 GHz, 45 dB Rejection from 38 to 50 GHz
SKU:SCF-27317335-VFVF-B1
Availability:6 to 8 Weeks ARO

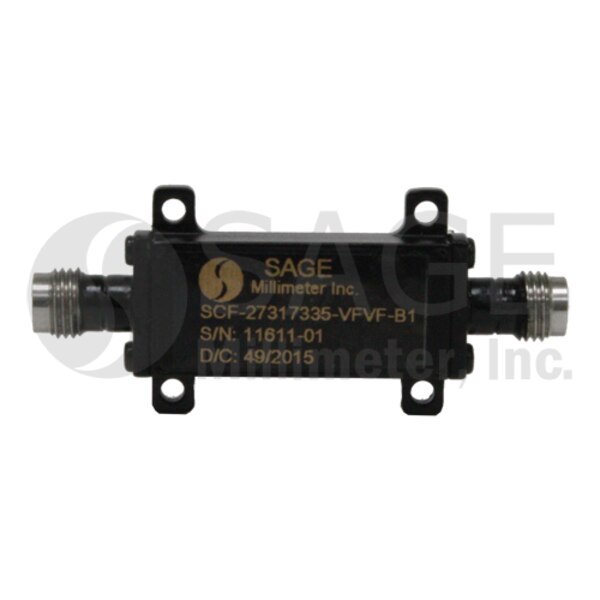

SCF-27317335-VFVF-B1 is a coaxial bandpass filter to pass the frequency of 18 to 35 GHz. The maximum insertion loss of the bandpass filter is 3.0 dB. The rejection frequencies are 15 GHz or less and 38 GHz or higher and the minimum rejection is 40 dB. The RF connectors of the the filter is V (F) connectors. The passband VSWR of the filter is 2:1 maximum.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$2,100.00
5 - 9$1,890.00
10 - 24$1,701.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency18 GHz
Maximum Passband Frequency35 GHz
Low Side Rejection45 dB
High Side Rejection45 dB
Return Loss10 dB
Insertion Loss3 dB
Impedance50 Ohms
RF Ports1.85 mm (F)
