Broadband Single Sideband Modulator

18 to 33 GHz, 13 dB Conversion Loss, 20 dB Image Rejection
Availability:3 to 5 Days ARO

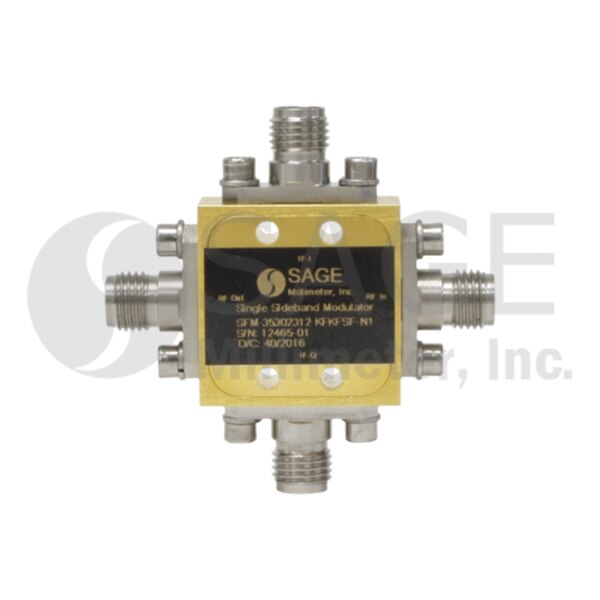

SFM-18333313-KFKFSF-N1-M is an 18 to 33 GHz Band single side band modulator that covers the frequency range of 18 to 33 GHz. The typical conversion loss of the modulator is 13 dB with the quadrature IF driving signals of ±10 Vp-p/5 mA for both I and Q ports. The typical input/output isolation and image rejection is 20 dB, respectively. In addition, the modulator can be readily used as an I/Q mixer or image rejection mixer by using one of the RF as LO port and/or adding the IF hybrid coupler.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Output RF Frequency Minimum18 GHz
Output RF Frequency Maximum33 GHz
IF Frequency MinimumDC
IF Frequency Maximum5 GHz
Conversion Loss13 dB
Image Rejection20 dB
