WR-42 Manual Waveguide Switch, E-Plane

18 to 26.5 GHz, 45 dB Isolation, WR-42 Waveguide
SKU:SWJ-42-M1
Availability:6 to 8 Weeks ARO

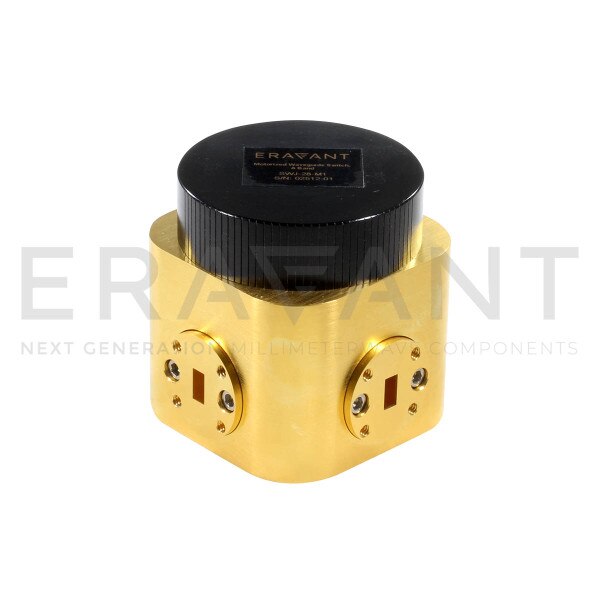

SWJ-42-M1 is a K-band manual switch that covers the frequency range of 18 to 26.5 GHz. It is an E-plane switch that has four ports which allows four switching positions, two through and two adjacent paths. The switch is a bi-directional, multi-path device which allows clockwise and anti-clockwise switching between two through ports and two adjacent ports. The typical insertion loss and isolation are 0.2 dB and 45 dB, respectively. The RF ports are WR-42 waveguides with UG-595/U flanges. The H-plane version of the switch is offered under model SWJ-42-M1-H.
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,950.00
5 - 9$1,755.00
10 - 24$1,579.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency26.5 GHz
Insertion Loss0.2 dB
Isolation45 dB
Return Loss20 dB
Cycle Time500,000
Power Handling100 W (CW)
RF PortsWR-42 Waveguide
