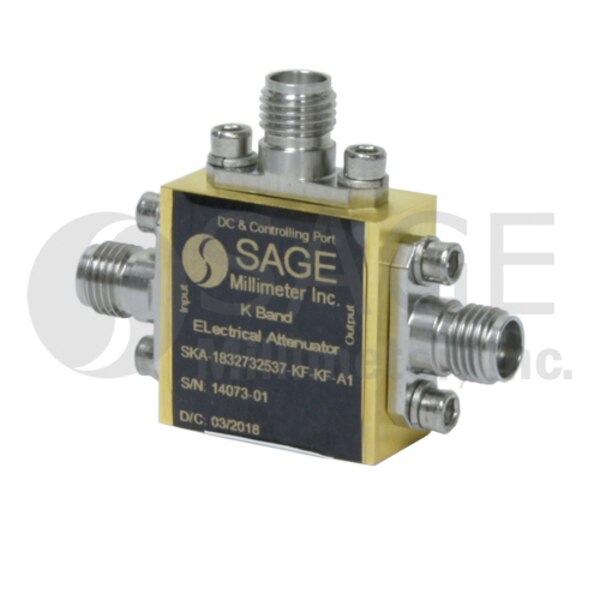

Broadband High Dynamic Range Electrical Attenuator

18 to 26.5 GHz, 37 dB Attenuation, 2.92 mm (F) RF Ports, SMA (F) Bias Port
SKU:SKA-1832732537-KFKF-A1-M
Availability:3 to 4 Weeks ARO
Select up to 4 products to compare.
Select up to 4 products to compare.
SKA-1832732537-KFKF-A1-M is MMIC based electrical attenuator. The attenuator exhibits 2.5 dB typical insertion loss and 0 to 37 dB nominal attenuation range across the frequency range of 18.0 to 26.5 GHz while applying 0 to -3 VDC control voltage. While the control voltage of the standard model is 0 to -3 VDC, the maximum damage control voltage is - 5 VDC. The RF input and output ports are K(F) connectors, and the control port is a SMA(F) connector.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency26.5 GHz
Insertion Loss2.5 dB
Attenuation37 dB
DC Voltage Supply-3 V
DC Current10 mA
Switching Speed-
RF Port2.92 mm (F)
