Ka-Band Scalar Feed Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

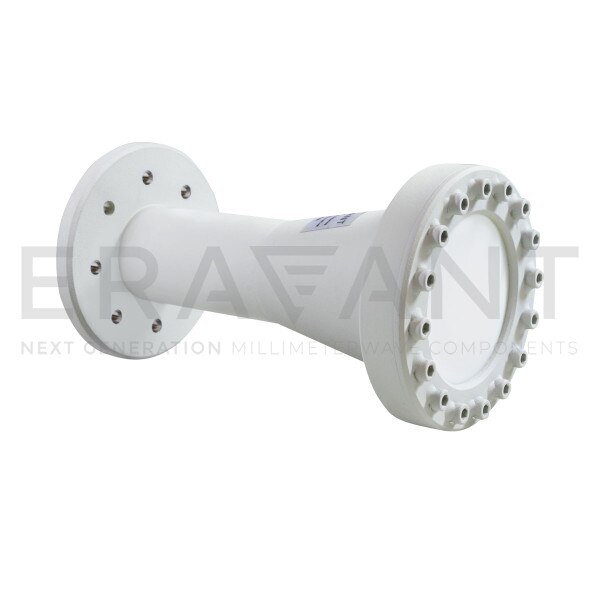

SAF-3334031820-28-S1-WR-ML is a military grade Ka-band, weather resistant, scalar feed horn antenna that operates from 33 to 40 GHz. The antenna offers a 18 dBi nominal gain and 20 degree typical half power beamwidth. The nominal side lobe levels are -25 dB or lower. The scalar feed horn is equipped with a WR-28 waveguide with UG-599/U-M grooved flange that supports linear polarized waveforms. The mechanical configuration is designed for weather resistance, with features such as an integrated radome and grooved waveguide flange.
