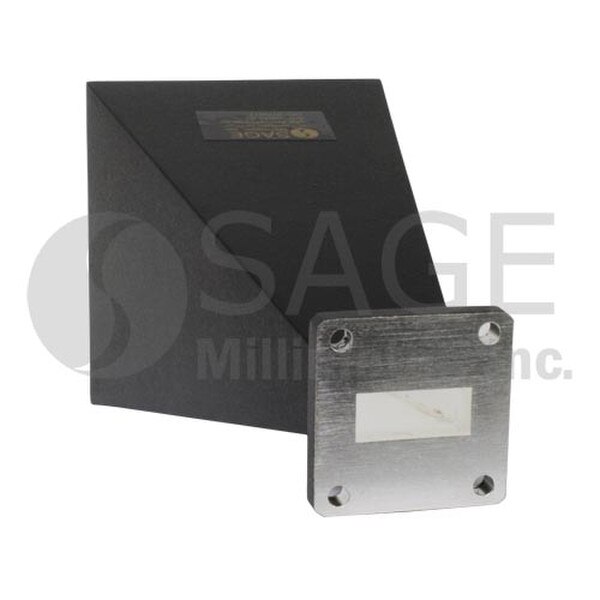

Airborne Rectangular Horn Antenna

18.3 dBi Gain, 7 to 12 GHz, WR-96 Waveguide with UG-39/U Flange, Custom Built
SKU:SAK-AR073123-96-C2
SAK-AR073123-96-C2 is a custom built, airborne WR-96 rectangular antenna. At center frequency, the antenna delivers a typical gain of 18.3 dBi and a half power beamwidth of 27.5 degrees on the E-plane and 16.5 degrees on the H-plane. The cross polarization of the antenna is 35 dB typical on the E-plane and 33 dB on the H-plane and the typical return loss is 14 dB. This antenna is equipped with a WR-96 rectangular waveguide and UG-39/U flange as its input port. By adding a waveguide to coax adapter, Eravant model number SWK-WC96NF-K1, the input port becomes a female N coax connector.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency7 GHz
Maximum Frequency12 GHz
Gain18.3 dBi
3 dB Beamwidth, E-Plane27.5°
3 dB Beamwidth, H-Plane16.5°
Return Loss14 dB
Antenna PortWR-96 Waveguide
