WR-42 Waveguide Pyramidal Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

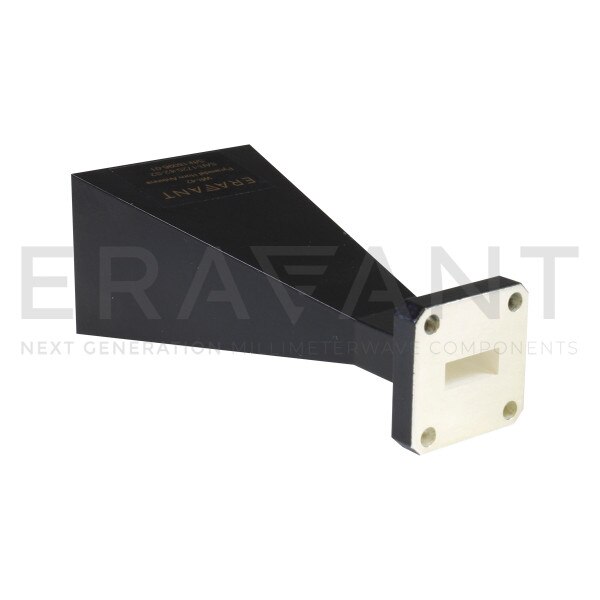

SAR-1725-42-S2 is a K-band pyramidal horn antenna that operates from 18.0 GHz to 26.5 GHz. The antenna offers 17 dBi nominal gain and a typical half power beamwidth of 25 degrees on the E-plane and 25 degrees on the H-plane, respectively. The antenna supports linear polarized waveforms. The input of this antenna is a WR-42 waveguide with UG-595/U flange. Other antennas with different gain and antenna port are offered under different model numbers.
