WR-28 Coaxial Rectangular Horn Antenna

17 dBi Gain, 26.5 to 40 GHz, 2.92 mm (F), Ka-Band
SKU:SAR-1725-28KF-E2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

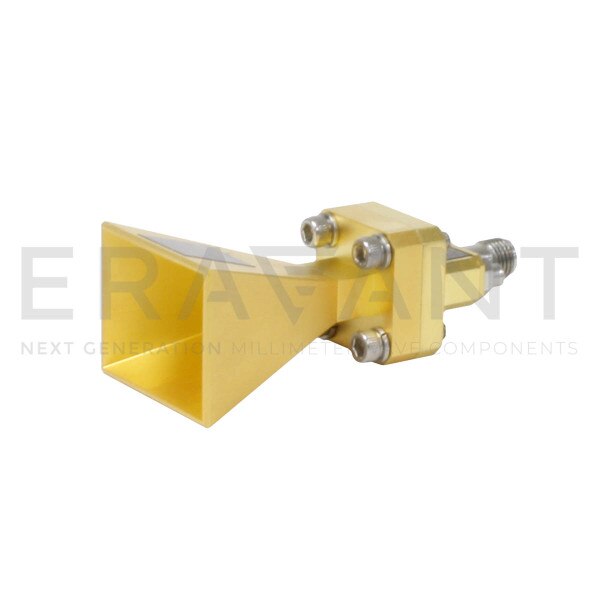

SAR-1725-28KF-E2 is a Ka-band pyramidal horn antenna with a end launch (180°) 2.92 mm (F) coax connector to cover the frequency range of 26.5 GHz to 40 GHz. The antenna offers 17 dBi nominal gain and a typical half power beamwidth of 23 degrees on the E-plane and 24 degrees on the H-plane. The antenna supports linear polarized waveforms. Right angle (90°) 2.92 mm (F) connector configuration is available under model SAR-1725-28KF-R2
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Gain17 dBi
3 dB Beamwidth, E-Plane23°
3 dB Beamwidth, H-Plane24°
Return Loss20 dB
Antenna Port2.92 mm Female
