E-Band Scalar Feed Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR12GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-WR12PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

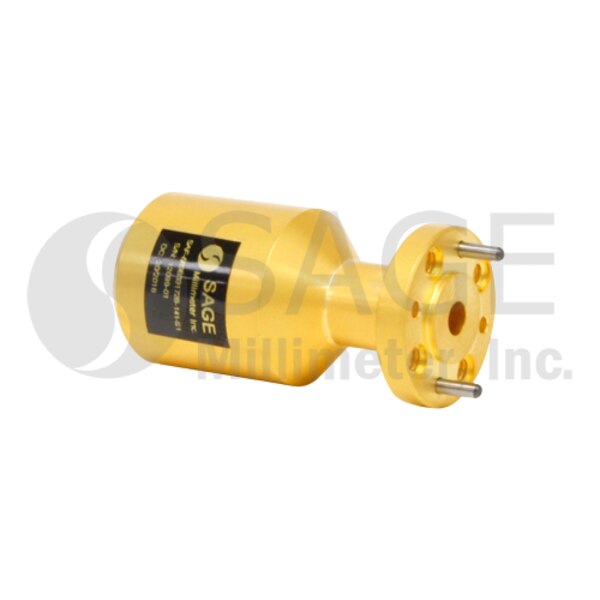

SAF-6039031725-141-S1 is an E-band scalar feed horn antenna that operates from 60 to 90 GHz. The antenna offers a 17 dBi nominal gain, 25 degree typical half power beamwidth, and -25 dB typical side lobe level. The scalar feed horn is equipped with a 0.141" diameter circular waveguide that supports both linear and circular polarization. A rectangular waveguide port configuration that only supports linear polarization is available under a different model number.
