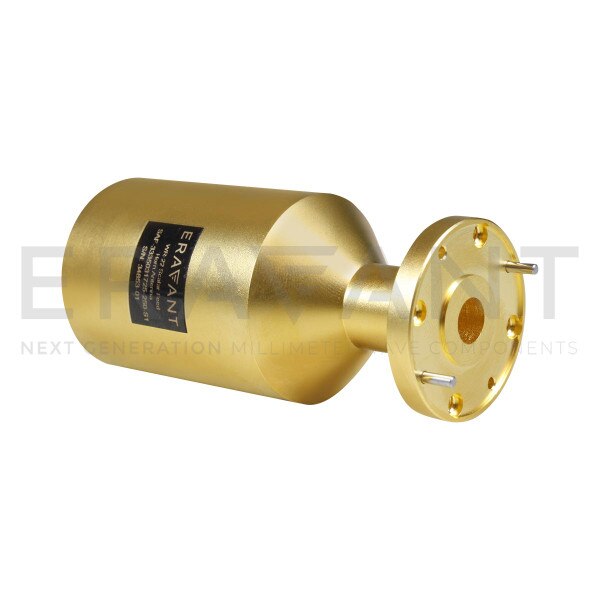

Q-Band Scalar Feed Horn Antenna

17 dBi Gain, 33 to 50 GHz, 0.250" Diameter Circular Waveguide
Availability:4 to 6 Weeks ARO
SAF-3335031725-250-S1 is a V-band scalar feed horn antenna that operates from 33 to 50 GHz. The antenna offers a 17 dBi nominal gain, 25 degree typical half power beamwidth, and -25 dB typical side lobe level. The scalar feed horn is equipped with a 0.250" diameter circular waveguide that supports both linear and circular polarization. A rectangular waveguide port configuration that only supports linear polarization is available under a different model number.
Login to View Pricing

Bulk Pricing

1 - 4$2,050.00
5 - 9$1,845.00
10 - 24$1,660.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Gain17 dBi
3 dB Beamwidth, E-plane25°
3 dB Beamwidth, H-plane25°
Return Loss20 dB
PolarizationLinear and Circular
Antenna Port0.250" Dia Circular WG
