Broadband Quad-Ridged, Dual-Polarized Horn, Limited Run

17 dBi Gain, 18 to 40 GHz, 30 dB Isolation, 2.92 mm (F)
SKU:SAC-1834031621-KF-S5-DP
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SAV-0634431050-KF-S1-QR as an alternative solution. Read more about Limited Run Products here.

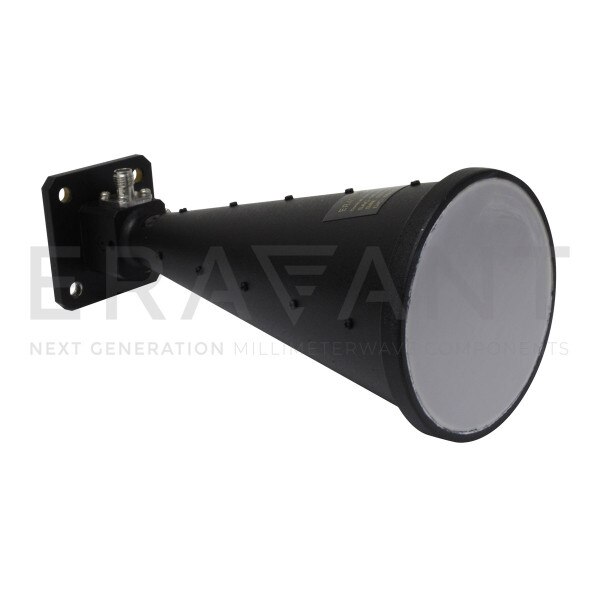

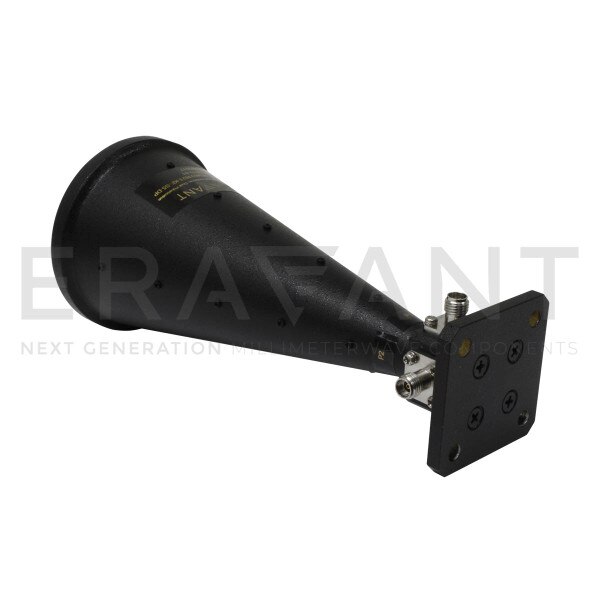

SAC-1834031621-KF-S5-DP is a quad-ridged, dual polarized horn antenna that covers the frequency range of 18 to 40 GHz. The antenna offers 17 dBi nominal gain and a half power beamwidth of 19 degrees on the E-plane and 14 degrees on the H-plane at center frequency. The antenna also offers -15 dB typical sidelobe levels and a nominal isolation of 30 dB. The input ports of this antenna are female 2.92mm (K) connectors.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency40 GHz
Gain17 dBi
3 dB Beamwidth, E-plane19°
3 dB Beamwidth, H-plane14°
Isolation30 dB
Return Loss10 dB
Horizontal and Vertical Ports2.92 mm (F)
