WR-51 Orthomode Transducer

15 to 22 GHz, 45 dB Isolation, 35 dB Cross Polarization, 0.510" x 0.510" Square Waveguide Antenna Port
Availability:IN STOCKPlease contact us if you need more units than what is available online.

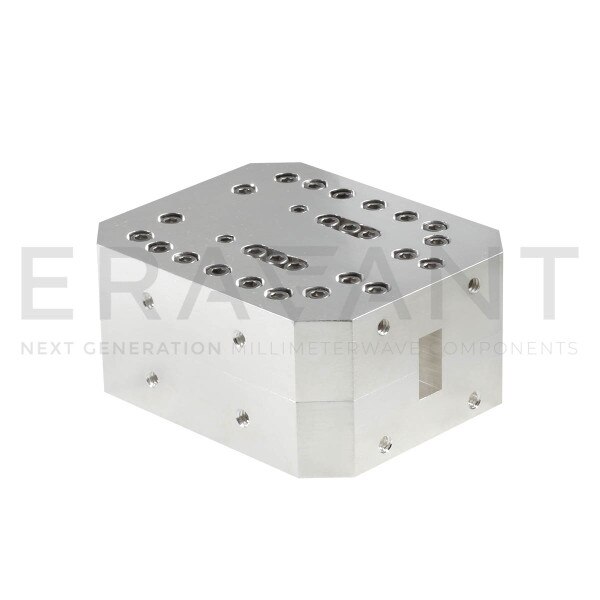

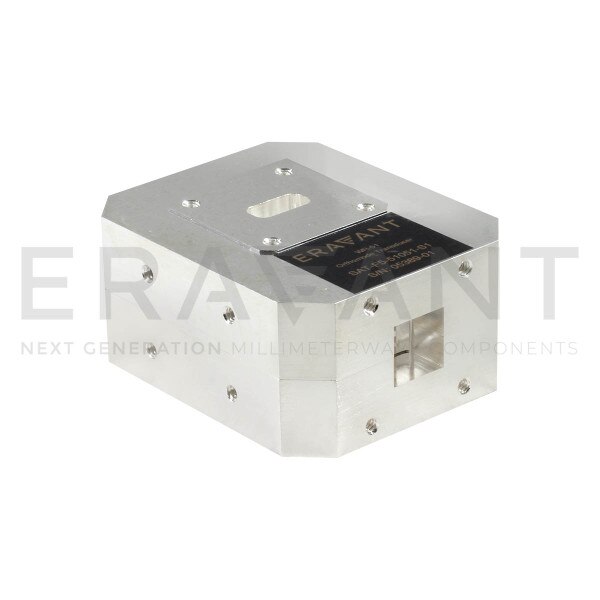

SAT-F5-51051-S1 is a full waveguide band WR-51 orthomode transducer (OMT) that operates between 15 and 22 GHz. The OMT separates a circular or elliptical polarized waveform into two linear, orthogonal waveforms or combines two linear polarized waveforms into one circular or elliptical polarized waveform or vice versa. The OMT also supports either vertical or horizontal polarized waveguide forms with 35 dB cross polarization rejections. The OMT shows high port isolation while providing a low insertion loss. The OMT is configured with a 0.510” x 0.510” square waveguide for the antenna port and two WR-51 waveguides for the horizontal and vertical ports. All ports have standard flanges and 6-32 threaded holes.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency15 GHz
Maximum Frequency22 GHz
Insertion Loss, Antenna to V Port0.5 dB
Insertion Loss, Antenna to H Port0.5 dB
Isolation45 dB
Cross Polarization35 dB
Antenna Port0.510" x 0.510" Square WG
Horizontal and Vertical PortsWR-51 WG
