WR-51 Waveguide Square Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

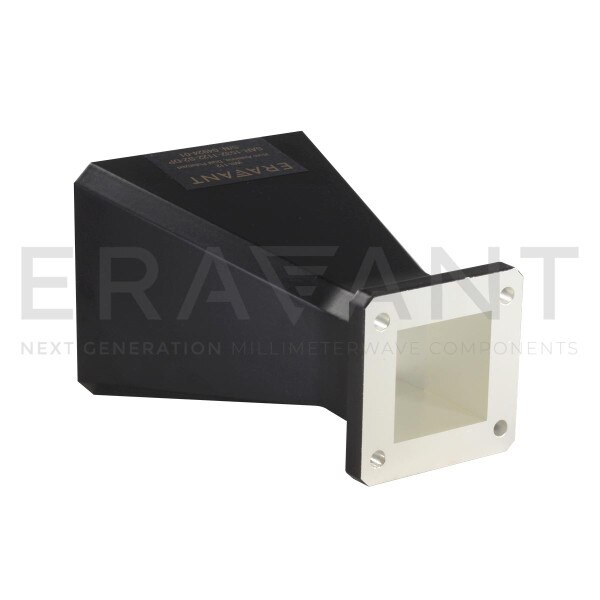

SAR-1532-510-S2 is a square horn antenna that operates from 15 GHz to 22 GHz. The antenna offers 15 dBi nominal gain and a typical half power beamwidth of 22 degrees on the E-plane and 32 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a 0.51" X 0.51" waveguide with standard flange.
