WR-28 Waveguide Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

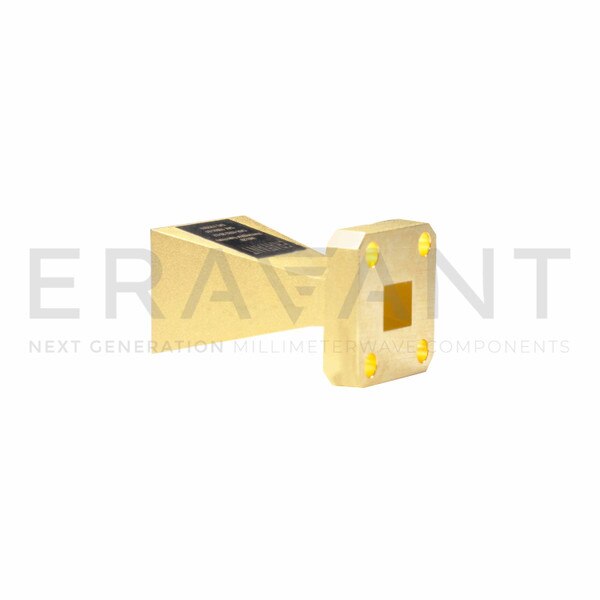

SAR-1532-28-S2 is a Ka-band pyramidal horn antenna that operates from 26.5 GHz to 40 GHz. The antenna offers 15 dBi typical gain and a typical half power beamwidth of 33 degrees on both E-plane and H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-28 waveguide with UG-599/U flange.
