WR-22 Waveguide Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR15GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-WR15PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

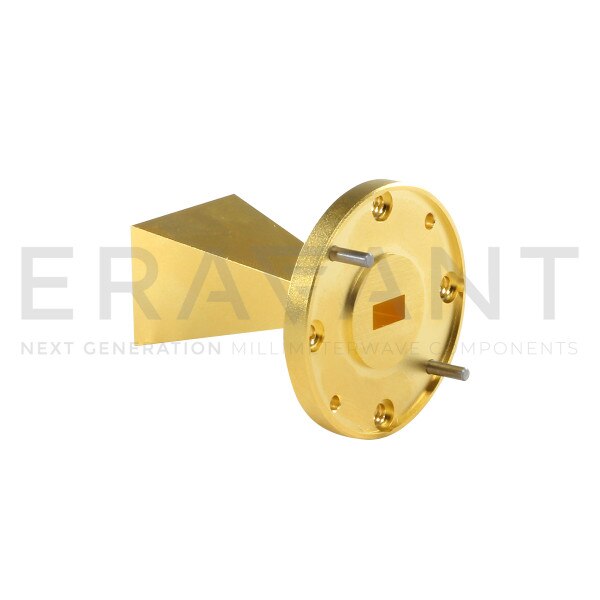

SAR-1532-22-S2 is a Q-band pyramidal horn antenna that operates from 33 GHz to 50 GHz. The antenna offers a nominal 15 dBi gain and a typical half power beamwidth of 32 degrees on the E-plane and 32 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-22 waveguide with UG-383/U anti-cocking flange.
