WR-12 Waveguide Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR12GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-WR12PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

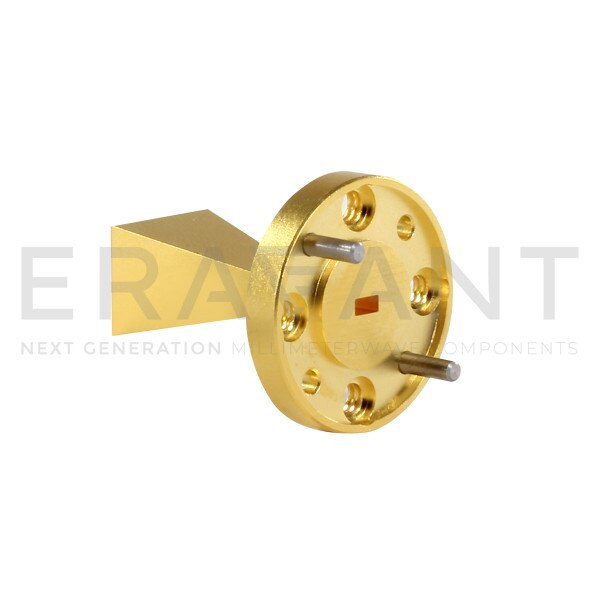

SAR-1532-12-S2 is an E-band pyramidal horn antenna that operates from 60 GHz to 90 GHz. The antenna offers 15 dBi nominal gain and a typical half power beamwidth of 30 degrees on the E-plane and 32 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-12 waveguide with UG-387/U anti-cocking flange.
