WR-10 Waveguide Rectangular Horn Antenna

15 dBi Gain, 75 to 110 GHz, W-Band
SKU:SAR-1532-10-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

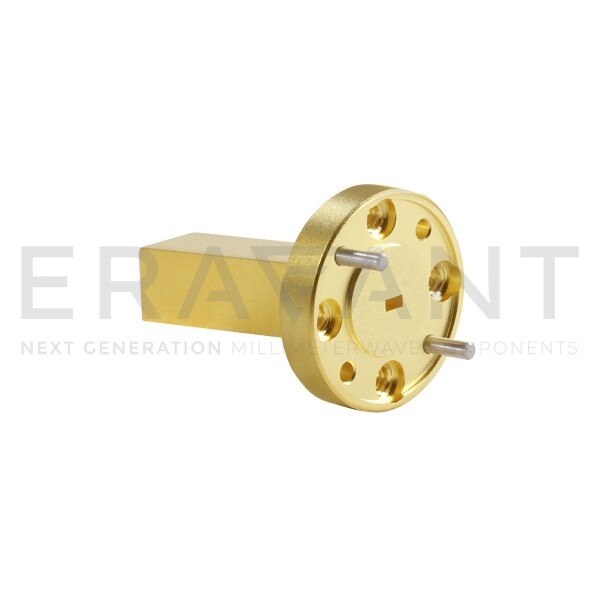

SAR-1532-10-S2 is a W-band pyramidal horn antenna that operates from 75 to 110 GHz. The antenna offers 15 dBi nominal gain and a typical half power beamwidth of 32 degrees on the E-plane and 32 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-10 waveguide with UG-387/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 24 $490.00
25 - 49 $441.00
50 - 99 $396.90

Bulk Availability

QuantityAvailability
1 - 12In Stock

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Gain15 dBi
3 dB Beamwidth, E-Plane32°
3 dB Beamwidth, H-Plane32°
Return Loss23 dB
Antenna PortWR-10 Waveguide
