WR-08 Waveguide Conical Horn Antenna

15 dBi Gain, 100 to 112 GHz, F-Band
SKU:SAC-1533-08-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

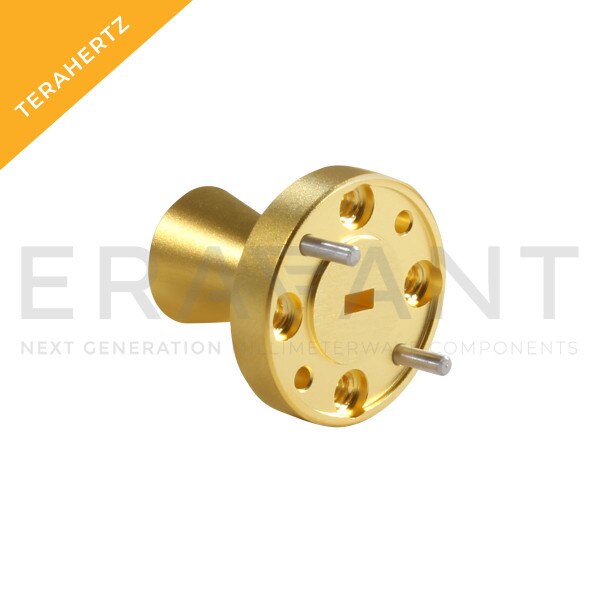

SAC-1533-08-S2 is an F-band conical horn antenna that operates from 100 to 112 GHz. The antenna offers 15 dB nominal gain and a typical half powerbeam width of 30 degrees on the E-plane and 36 degrees on the H-plane. The horn also offers typical sidelobes of -16 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear polarization. The input of this antenna is a WR-08 waveguide with UG-387/U-M flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$540.00
10 - 24$486.00
25 +$437.40

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency100 GHz
Maximum Frequency112 GHz
Gain15 dBi
3 dB Beamwidth, E-Plane30°
3 dB Beamwidth, H-Plane36°
Return Loss23 dB
PolarizationLinear
Antenna PortWR-08 Waveguide
