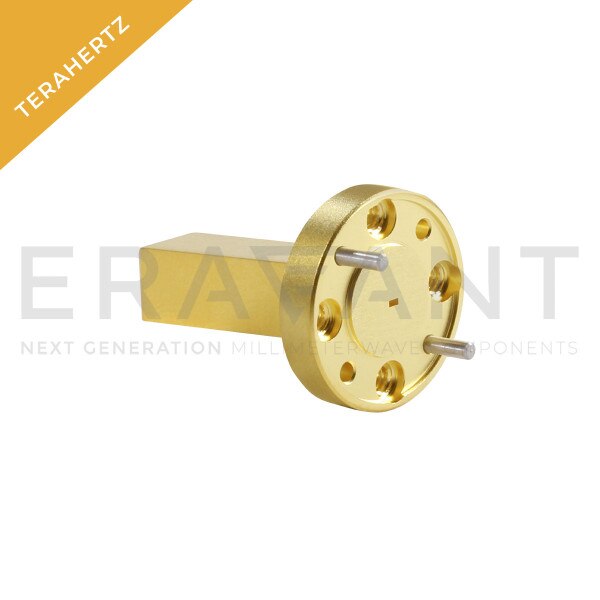

WR-06 Waveguide Rectangular Horn Antenna

15 dBi Gain, 110 to 170 GHz, D-Band
SKU:SAR-1532-06-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAR-1532-06-S2 is a D-band pyramidal horn antenna that operates from 110 GHz to 170 GHz. The antenna offers 15 dBi nominal gain and a typical half power beamwidth of 33 degrees on the E-plane and 31 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-06 waveguide with UG-387/U-M anti-cocking flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Gain15 dBi
3 dB Beamwidth, E-Plane33°
3 dB Beamwidth, H-Plane31°
Return Loss-23 dB
Antenna PortWR-06 Waveguide
