Ka-Band Dual-Polarized Scalar Feed Horn Antenna

15 dBi Gain, 24 to 40 GHz, 35 dB Isolation, WR-28 Waveguide
SKU:SAF-2434031535-358-S1-280-DP
Availability:1 to 2 Weeks ARO

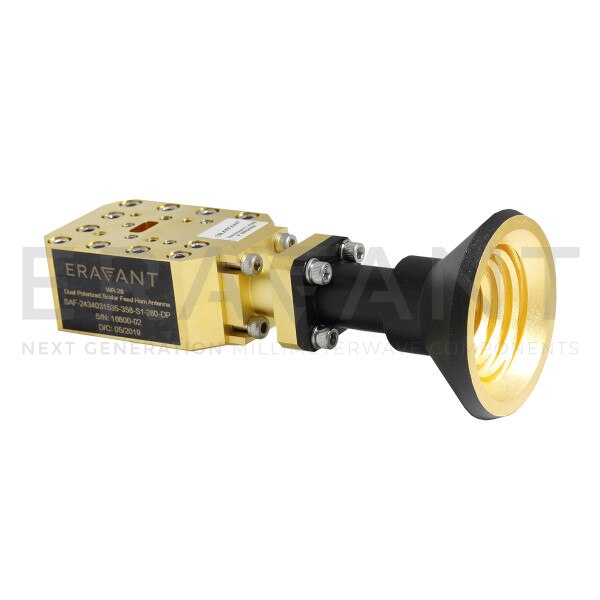

SAF-2434031535-358-S1-280-DP is a dual polarized, WR-28 scalar feed horn antenna assembly that covers several popular 5G bands in the frequency range of 24 to 40 GHz. The antenna features an integrated orthomode transducer (OMT) that provides high port isolation and a broad band scalar horn that provides low sidelobe levels. The OMT enables the antenna to separate a circular or elliptical polarized waveform into two linear, orthogonal waveforms or vice versa. The dual polarized horn also supports either vertical or horizontal polarized waveguide forms. At center frequency, the horn antenna exhibits 15 dBi nominal gain and a typical half power beamwidth of 35 degrees and -25 dB sidelobe levels, respectively. The antenna exhibits 35 dB typical port isolation between the horizontal and vertical ports. The horizontal and vertical ports are WR-28 waveguides with UG-599/U flanges and 4-40 threaded holes.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency24 GHz
Maximum Frequency40 GHz
Gain15 dBi
3 dB Beamwidth, E-plane35°
3 dB Beamwidth, H-plane35°
Isolation35 dB
Return Loss15 dB
Horizontal and Vertical PortsWR-28 Waveguide
