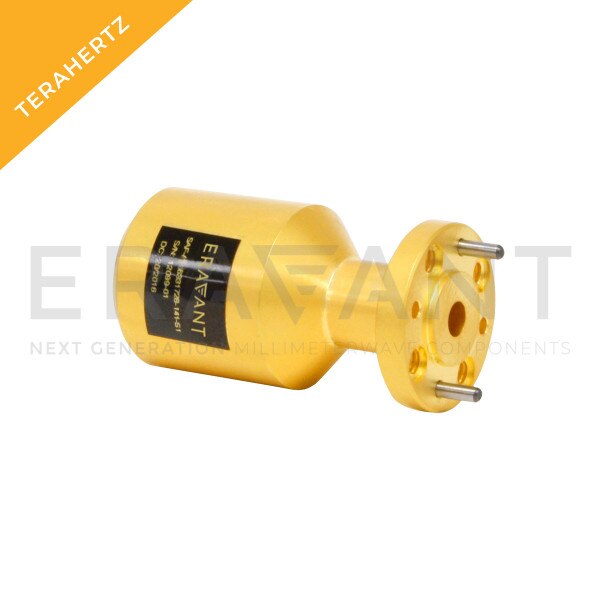

G-Band Scalar Feed Horn Antenna

15 dBi Gain, 140 to 170 GHz, 0.067" Diameter Circular Waveguide
SKU:SAF-1442241535-067-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAF-1442241535-067-S1 is a G-band scalar feed horn antenna that operates from 140 to 220 GHz. The antenna offers a 15 dBi nominal gain, 35 degree typical half power beamwidth, and -25 dB typical side lobe level. The scalar feed horn is equipped with a 0.067" diameter circular waveguide that supports both linear and circular polarization. A rectangular waveguide port configuration that only supports linear polarization is available under a different model number.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $2,900.00
3 - 4 $2,755.00
5 - 9 $2,617.25

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency220 GHz
Gain15 dBi
3 dB Beamwidth, E-plane35°
3 dB Beamwidth, H-plane35°
Return Loss20 dB
PolarizationLinear and Circular
Antenna Port0.067" Dia Circular WG
