Broadband Double-Ridged Horn, Limited Run

This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SAV-1431141129-1F-S1 as an alternative solution. Read more about Limited Run Products here.

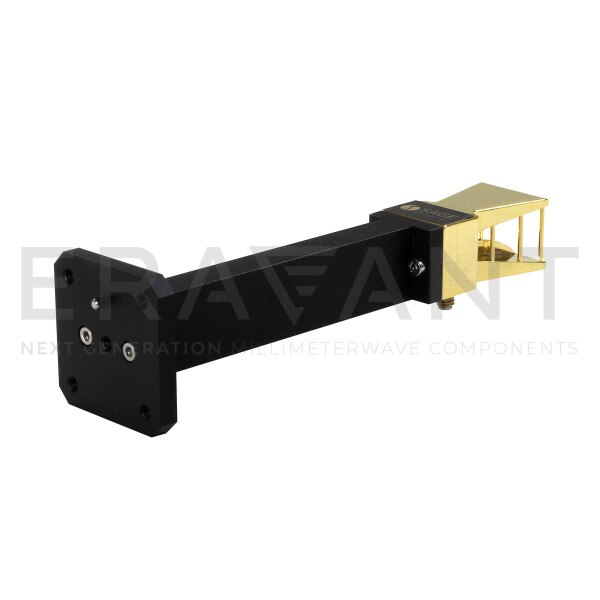

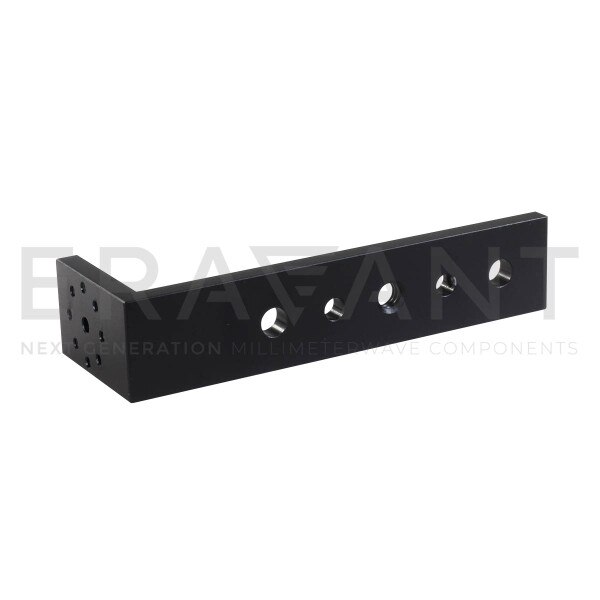

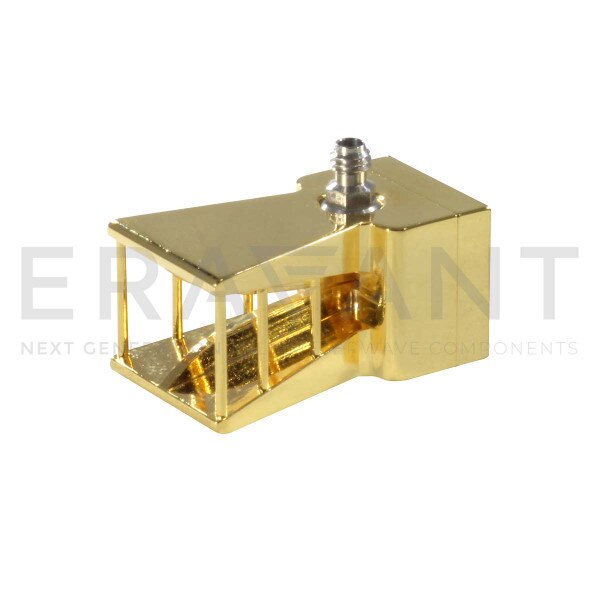

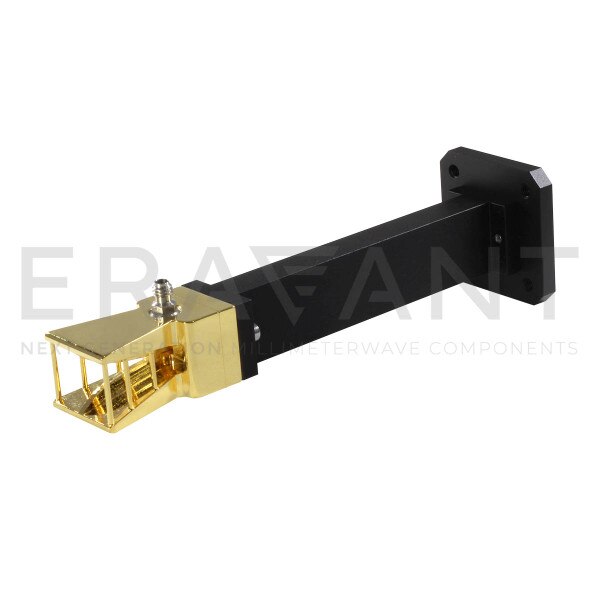

SAV-1431141535-1F-U5 is a dual-ridged broadband horn antenna that operates from 14 to 110 GHz. The antenna offers a typical gain of 15 dBi and a typical 3 dB beamwidth of 35° on both the E-plane and H-plane, respectively. The antenna supports linear polarized waveforms. The antenna features a compact design and provides two M2 holes and a mounting fixture and plate for flexible mounting capacity. The RF port is equipped with a female 1 mm connector.
