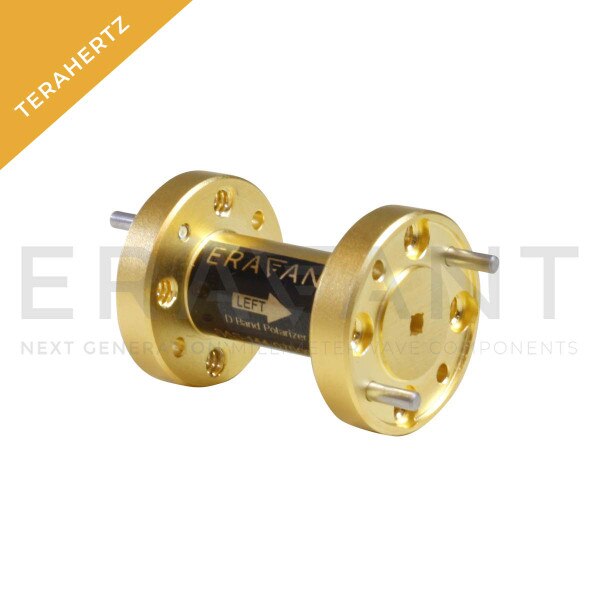

D-Band Linear to Circular Polarizer

144 GHz Center, 1.1 Axial Ratio, 0.075" Diameter Circular Waveguide
SKU:SAS-144-07506-F1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAS-144-07506-F1 is a D band, linear to circular polarizer that operates at 144 GHz with a ±6 GHz bandwidth. The polarizer offers a typical insertion loss of 1.0 dB, an axial ratio of 1.1, and a return loss of 20 dB, respectively. The polarizer is fixed and can be used for either right-handed or left-handed polarization depending on the direction of the input signal. The polarizer is often combined with SAGE Millimeter’s rectangular to circular waveguide transition (SWT-06075-SB) and WR-06 conical horn antenna (SAC-2309-075-S2) for various system applications.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 4 $2,350.00
5 - 9 $2,115.00
10 - 24 $1,903.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Center Frequency144 GHz
Bandwidth±6 GHz
Insertion Loss1.0 dB
Axial Ratio1.1
Return Loss20 dB
Input/Output0.075" Diameter Circular Waveguide
