G-Band DPDT Motorized Switch

140 to 220 GHz, 40 dB Isolation, WR-05 Waveguide
SKU:SWJ-05-T1

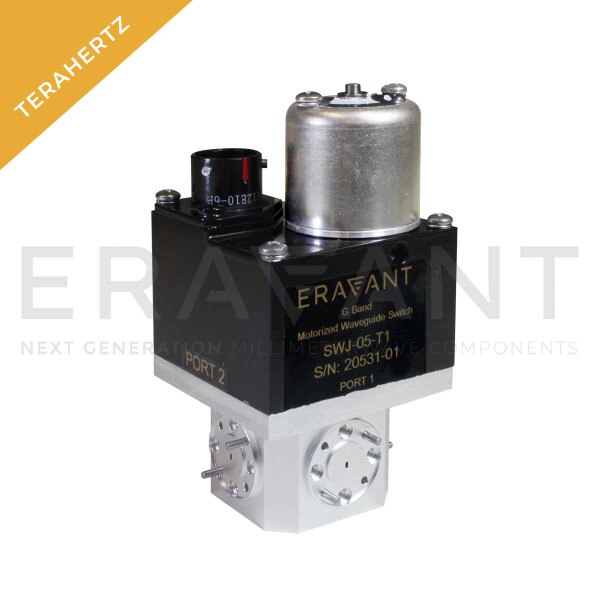

SWJ-05-T1 is a WR-05 motorized double pole, double throw (DPDT) transfer switch with a TTL driver that covers the frequency range of 140 to 220 GHz. It is an E-plane, bidirectional switch that has four ports which allows each port to be switched on and off between the adjacent ports. The typical insertion loss is 2.5 dB and the typical isolation is 40 dB. The RF ports are WR-05 waveguides with UG-387/U-M anti-cocking flanges. The bias and control signal is supplied by a standard MS3112E10-6P type connector.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $9,400.00
2 $8,930.00
3 - 4 $8,483.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency220 GHz
Insertion Loss2.5 dB
Isolation40 dB
Return Loss15 dB
Bias±28 VDC/250 mA
Switching Speed125 mS
Power Handling100 W (CW)
RF PortsWR-05 Waveguide
