G-Band, Mini Faraday Isolator

140 to 220 GHz, 23 dB Isolation, 4.5 dB Insertion Loss, WR-05 Waveguide
Availability:4 to 6 Weeks ARO

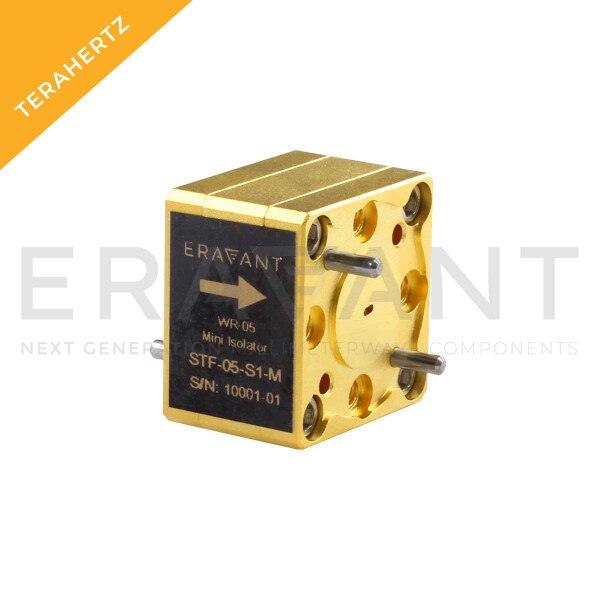

STF-05-S1-M is a WR-05 miniature Faraday isolator that operates from 140 to 220 GHz. The mini isolator utilizes a novel magnetic design with precision machined housings to achieve the smallest Faraday isolator package size offered by Eravant. Due to the nature of the magnetic configuration, the mini isolator’s performance is stable and resistant to external stray magnetic fields. The compact, robust package is highly ideal for system integration and subassemblies where space is at a premium. The mini isolator offers 23 dB typical isolation and 4.5 dB typical insertion loss. The input and output ports are WR-05 waveguides with UG-387/U-M anti-cocking flanges. Other mechanical configurations, such as block cavity type housings that allow rear access for waveguide screws, are available under different model numbers.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,250.00
5 - 9 $1,125.00
10 - 24 $1,012.50

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency220 GHz
Insertion Loss4.5 dB
Isolation23 dB
Return Loss15 dB
Power Handling0.1 W
RF PortWR-05 Waveguide
