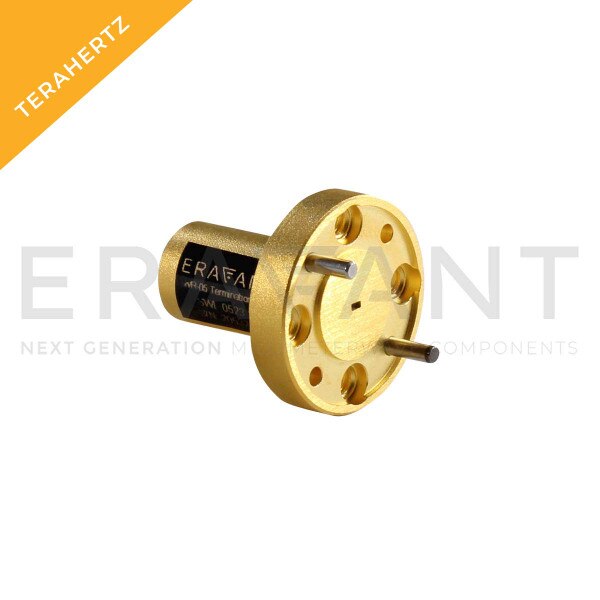

G-Band Fixed Waveguide Termination Load

140 to 220 GHz, 0.1 W Power Handling, WR-05 Waveguide
SKU:SWL-0523-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWL-0523-S1 is a low power, WR-05 waveguide termination load that covers the frequency range of 140 to 220 GHz. The termination load exhibits a typical VSWR of 1.12:1. It is designed and manufactured to offer a good match for system applications. Custom levels of power handling are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $750.00
10 - 24 $675.00
25 - 49 $607.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency220 GHz
Power Handling, Watts0.1 W
Power Handling, dBm20 dBm
VSWR1.12
Load TypeFixed
Waveguide PortWR-05 Waveguide
