E-Band Scalar Feed Horn Antenna

14 dBi Gain, 60 to 90 GHz, WR-12 Waveguide
SKU:SAF-6039031437-12-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

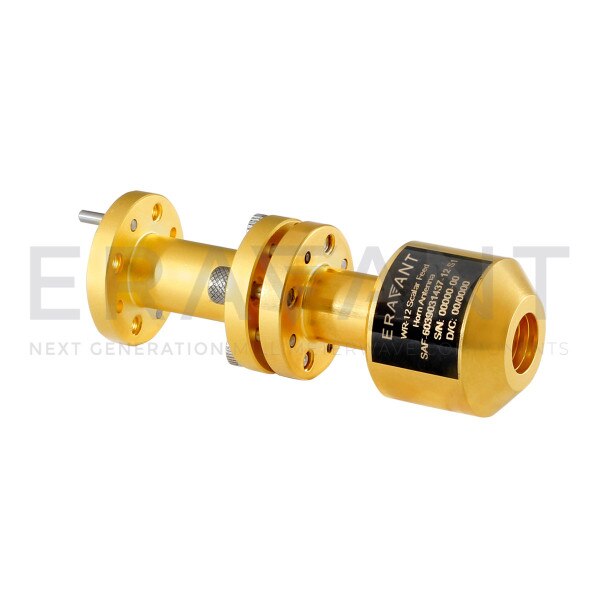

SAF-6039031437-12-S1 is an E-band scalar feed horn antenna that operates from 60 to 90 GHz. The antenna offers a 14 dBi nominal gain, a typical half power beamwidth 37 degrees on the E-Plane and H-Plane. The antenna has sidelobe levels of -25 dB on the E-Plane and H-Plane. The scalar feed horn is equipped with a waveguide transition, model number SWT-12125-SB, to transition from a 0.125" diameter circular waveguide to a WR-12 rectangular waveguide that supports linear polarization. The model with 0.125" diameter circular waveguide interface, which supports both circular and linear polarizations, is offered under model number SAF-6039031437-125-S1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Gain14 dBi
3 dB Beamwidth, E-plane37°
3 dB Beamwidth, H-plane37°
Return loss20 dB
PolarizationLinear
Antenna PortWR-12 Waveguide
