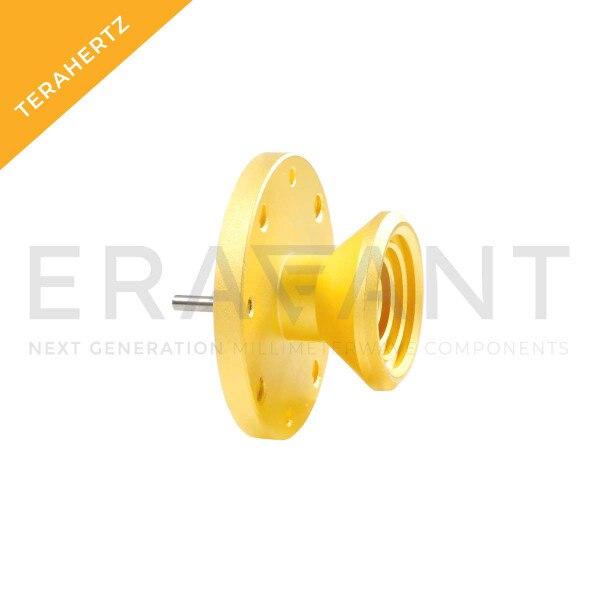

F-Band Scalar Feed Horn Antenna

13 dBi Gain, 90 to 140 GHz, 0.094" Diameter Circular Waveguide
SKU:SAF-9031441340-094-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAF-9031441340-094-S1 is a F-band scalar feed horn antenna that covers the frequency range of 90 to 140 GHz. At center frequency, the horn antenna exhibits 13 dBi nominal gain and a typical half power beamwidth of 40 degrees. The antenna has a typical return loss of 20 dB, and -25 dB nominal side lobes on the E-Plane and H-Plane. The antenna is equipped with a Ø 0.094” circular waveguide with a UG-387/U-M anti-cocking flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency90 GHz
Maximum Frequency140 GHz
Gain13 dBi
3 dB Beamwidth, E-plane40°
3 dB Beamwidth, H-plane40°
Return Loss20 dB
PolarizationLinear and Circular
Antenna Port0.094" Dia Circular WG
