V-Band Dual-Polarized Scalar Feed Horn Antenna

13 dBi Gain, 50 to 75 GHz, 30 dB Isolation, WR-15 Waveguide
SKU:SAF-5037531340-165-S1-148-DP
Availability:IN STOCKPlease contact us if you need more units than what is available online.

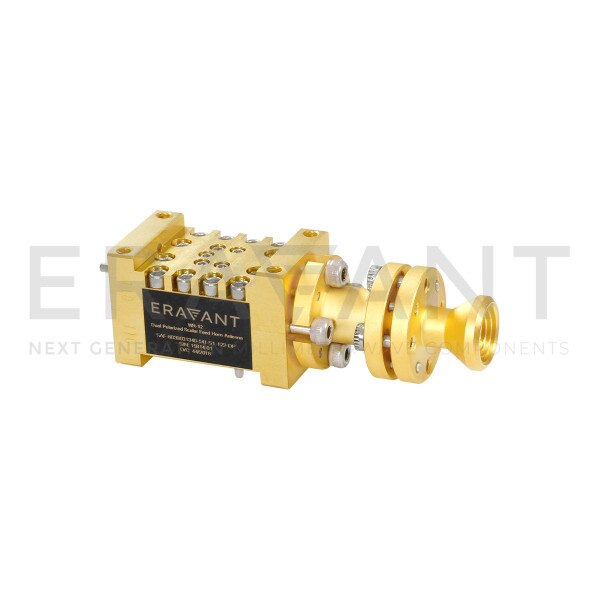

SAF-5037531340-165-S1-148-DP is a dual polarized, WR-15 scalar feed horn antenna assembly that covers several popular 5G bands in the frequency range of 50 to 75 GHz. The antenna features an integrated orthomode transducer (OMT) that provides high port isolation and a broad band scalar horn that provides low sidelobe levels. The OMT enables the antenna to separate a circular or elliptical polarized waveform into two linear, orthogonal waveforms or vice versa. The dual polarized horn also supports either vertical or horizontal polarized waveguide forms At center frequency, the horn antenna exhibits 13 dBi nominal gain and a typical half power beamwidth of 40 degrees and -25 dB sidelobe levels, respectively. The antenna exhibits 30 dB typical port isolation between the horizontal and vertical ports. The horizontal and vertical ports are WR-15 waveguides with UG-385/U-M anti-cocking flanges and 4-40 threaded holes.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Gain13 dBi
3 dB Beamwidth, E-plane40°
3 dB Beamwidth, H-plane40°
Isolation30 dB
Return Loss15 dB
Horizontal and Vertical PortsWR-15 Waveguide
