U-Band Scalar Feed Horn Antenna, Wellprice

This is a Wellprice model that may not be offered in the future. Customers who anticipate long-term requirements should consider SAF-4036031340-219-S1 as an alternative solution. Read more about Wellprice Products here.

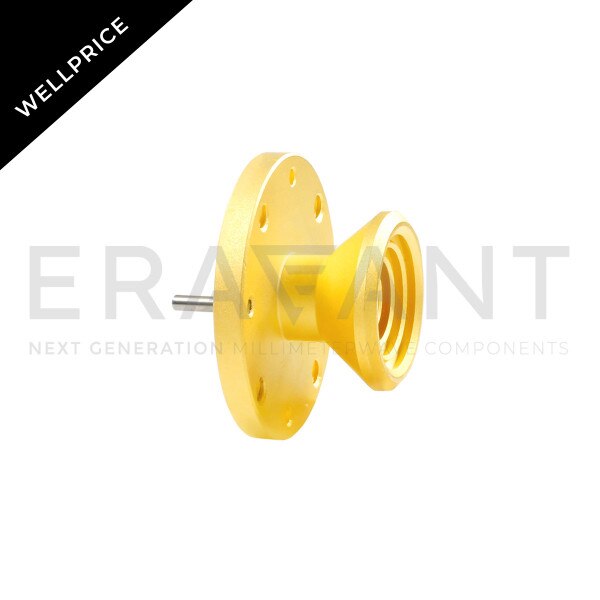

SAF-4036031340-219-S1-WP is a WR-19 scalar feed horn antenna assembly that covers several popular 5G bands in the frequency range of 40 to 60 GHz. At center frequency, the horn antenna exhibits 13 dBi nominal gain and a typical half power beamwidth of 40 degrees. The antenna has a return loss of 20 dB, and -25 dB side lobe levels on the E-Plane and H-Plane. The antenna is equipped with a ø0.219" circular waveguide with a UG-383/U-M flange.
