D-Band Dual-Polarized Scalar Feed Horn Antenna

13 dBi Gain, 110 to 170 GHz, 30 dB Isolation, WR-06 Waveguide

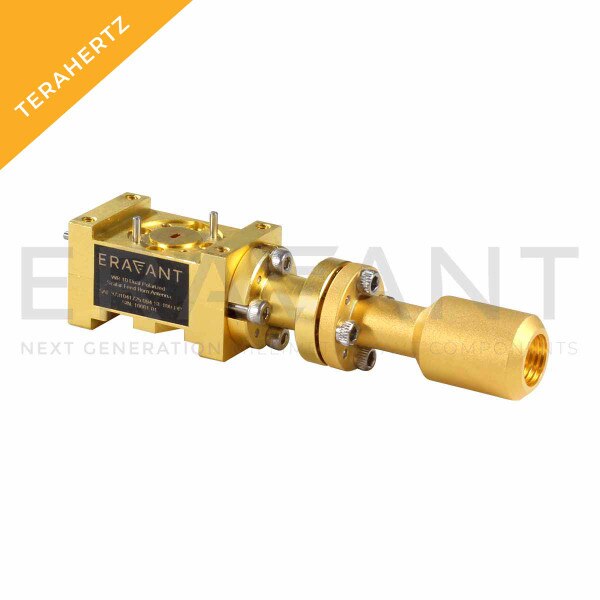

SAF-1141741335-082-S1-065-DP is a dual polarized, WR-06 scalar feed horn antenna assembly that covers the frequency range of 110 to 170 GHz. The assembly features an integrated orthomode transducer (OMT) that provides high port isolation and cross-polarization cancellation and a broad band scalar horn that provides low sidelobe levels. The OMT enables the antenna to separate a circular or elliptical polarized waveform into two linear, orthogonal waveforms or vice versa. The dual polarized horn also supports either vertical or horizontal polarized waveguide forms with more than 18 dB cross polarization rejections. At center frequency, the horn antenna exhibits 13 dBi nominal gain, typical half power beamwidth of 35 degrees and sidelobe levels of -25 dB or lower. The OMT exhibits 30 dB typical port isolation between the horizontal and vertical ports. The horizontal and vertical ports are WR-06 waveguides with UG-387/U-M anti-cocking flanges. Coaxial port configurations are also available under different model numbers. The orthomode transducer (Model SAT-FD-06506-S1), compact square to circular transition (Model SWT-065082-SB-C-QC), and scalar feed horn antenna (Model SAF-1141741535-082-S1) can be purchased separately.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Gain13 dBi
3 dB Beamwidth, E-plane35°
3 dB Beamwidth, H-plane35°
Isolation30 dB
Return Loss15 dB
Horizontal and Vertical PortsWR-06 Waveguide
