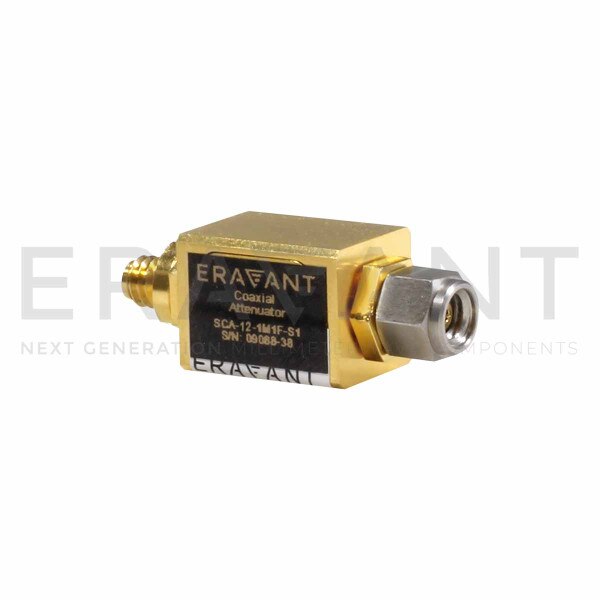

Coaxial Fixed Attenuator

12 dB Attenuation, 1.0 mm (M) to (F), DC to 110 GHz, 27 dBm
SKU:SCA-12-1M1F-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SCA-12-1M1F-S1 is a 12 dB 1 mm coaxial fixed attenuator that is used in millimeterwave systems and operates from DC to 110 GHz. While the coaxial fixed attenuator is designed and fabricated for full 1 mm coaxial band applications, the attenuation value of this model will have a wide range due its broadband coverage. Various attenuation values are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 2 $3,000.00
3 - 4 $2,850.00
5 - 9 $2,707.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency110 GHz
Attenuation12 dB
Return Loss10 dB
Power Handling27 dBm
Connector 11.0 mm Male
Connector 21.0 mm Female
