WR-06 Waveguide Rotary Joint

110 to 170 GHz
SKU:SAN-11417425-075I075I-S1

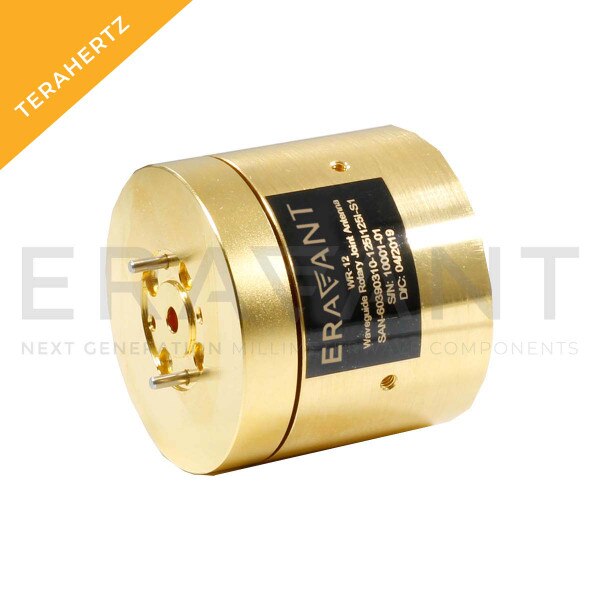

SAN-11417425-075I075I-S1 is a D-band rotary joint that covers the frequency range of 110 to 170 GHz. The rotary joint provides consistently low insertion loss while mechanically rotating at the speed of 10 turns or higher per second. The rotary joint incorporates a high precision bearing and propriety mechanical design to ensure smooth mechanical rotation. The rotary joint is equipped with two Ø 0.075” circular waveguides with UG-387/U-M anti-cocking flanges. The rotary joint supports circular polarized waveforms.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $5,950.00
2 $5,652.50
3 - 4 $5,369.88

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Insertion Loss2.5 dB
Return Loss15 dB
Rotating Speed10 Turns/Second
RF ConnectorsWR-06 Waveguide
