14th Harmonic Mixer

110 to 170 GHz RF, 5 to 12.0 GHz LO, DC to 1.6 GHz IF, WR-06 Waveguide, D-Band
SKU:SFH-06SFSF-A3-2
Availability:8 to 10 Weeks ARO

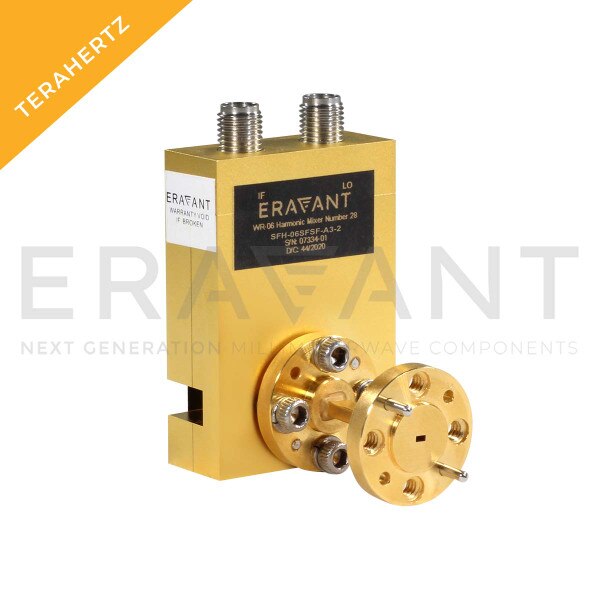

SFH-06SFSF-A3-2 is a D-Band balanced harmonic mixer that is specially designed for use with separate LO and IF ports. The mixer employs high performance, GaAs Schottky diodes and a balanced configuration to produce a superior RF performance. With an IF range of DC to 1.6 GHz, the harmonic mixer uses the harmonic number 14 of a 5.0 to 12.0 GHz LO at +16 dBm to translate 110.0 to 170.0 GHz. The harmonic mixer has a typical conversion loss of 45 dB. The mixer can be used as other even harmonic numbers, such as 10, 12, and 16 etc. with various conversion loss performance. In general, the lower the harmonics, the lower the conversion loss.
ECCN: 3A001.b.7.c.1
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 2 $4,250.00
3 - 4 $4,037.50
5 - 9 $3,835.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum RF Frequency110 GHz
Maximum RF Frequency170 GHz
Minimum LO Frequency5.0 GHz
Maximum LO Frequency12.0 GHz
Minimum IF FrequencyDC
Maximum IF Frequency1.6 GHz

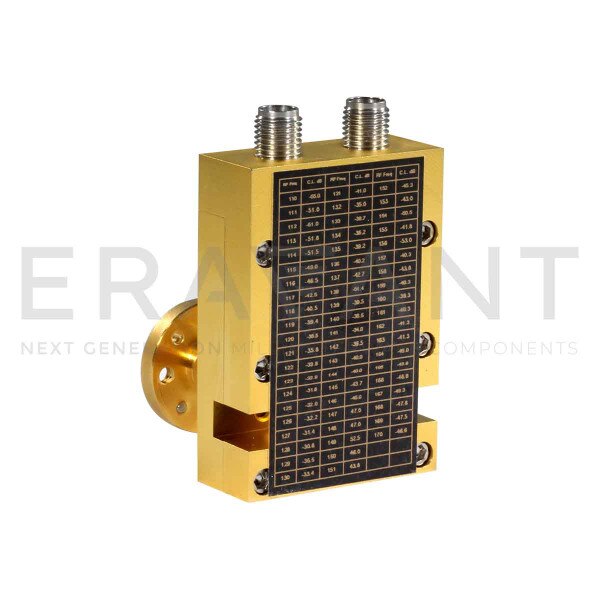

Conv. Loss45 dB
Harmonic Number14
RF PortWR-06 Waveguide
