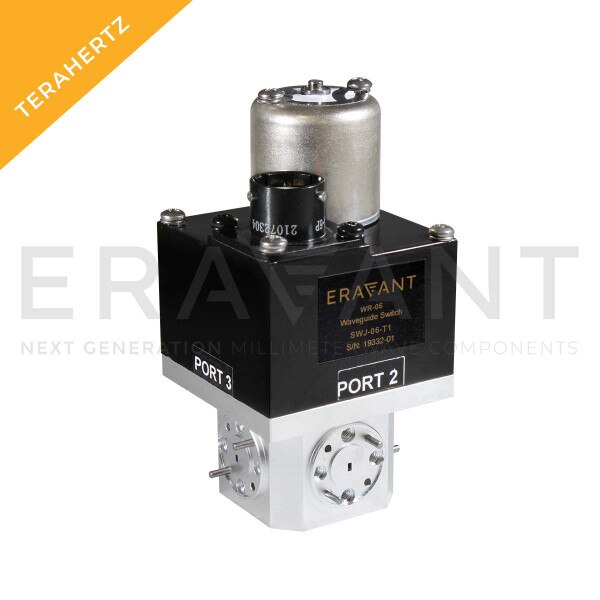

D-Band DPDT Motorized Switch

110 to 170 GHz, 45 dB Isolation, WR-06 Waveguide
SKU:SWJ-06-T1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWJ-06-T1 is a WR-06 motorized double pole, double throw (DPDT) transfer switch with a TTL driver that covers the frequency range of 110 to 170 GHz. It is an E-plane, bidirectional switch that has four ports which allows each port to be switched on and off between the adjacent ports. The typical insertion loss is 1.5 dB and the typical isolation is 45 dB. The RF ports are WR-06 waveguides with UG-387/U-M anti-cocking flanges. The bias and control signal is supplied by a standard MS3112E10-6P type connector.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $6,250.00
2 $5,937.50
3 - 4 $5,640.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Insertion Loss1.5 dB
Isolation45 dB
Return Loss20 dB
Bias±28 VDC/250 mA
Switching Speed125 mS
Power Handling100 W (CW)
RF PortsWR-06 Waveguide
