D-Band Level Setting Attenuator, High Precision, Limited Run

110 to 170 GHz, 0 to 30 dB, WR-06 Waveguide
SKU:STA-30-06-M1
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider STA-30-06-M1-C-1.2 as an alternative solution. Read more about Limited Run Products here.

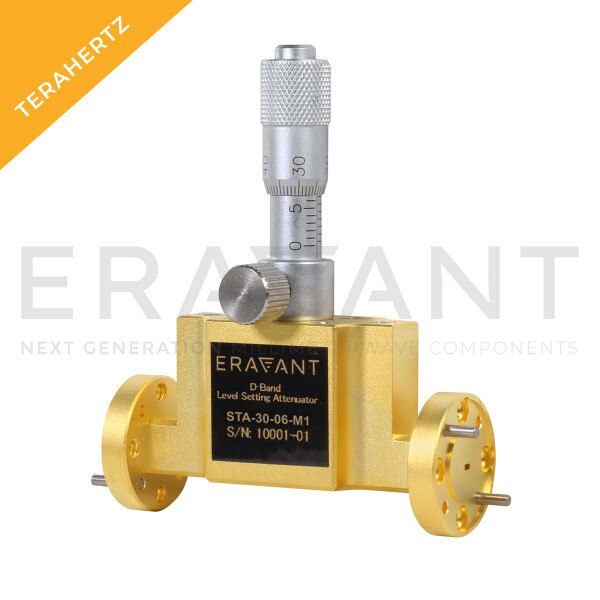

STA-30-06-M1 is a D-band level setting attenuator that covers the frequency range from 110 to 170 GHz. The attenuator features a precision micrometer dial with a knurled head locking screw, which allows for stable, repeatable settings that can be locked at any attenuation value. The level setting attenuator is an ideal piece of equipment in waveguide systems where broadband level setting is required. The attenuator exhibits 1.7 dB typical insertion loss and up to 40 dB nominal attenuation value across the entire operating bandwidth. The other attenuator types, such as direct reading, programmable and fixed tuned attenuators are also available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Attenuation0 to 30 dB
Return Loss20 dB
Power Handling0.3 W
RF PortWR-06 Waveguide
Attenuator TypeLevel Setting
ConfigurationStandard
