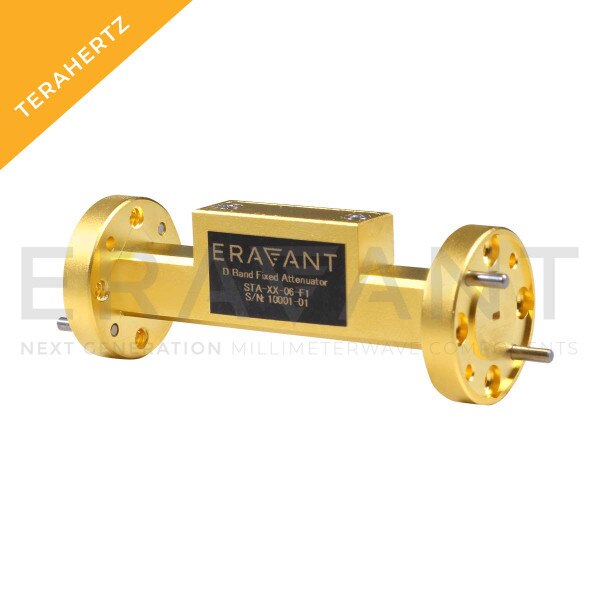

D-Band Fixed Attenuator, High Precision

110 to 170 GHz, 3 dB, WR-06 Waveguide
SKU:STA-03-06-F1
Availability:1 Week ARO
STA-03-06-F1 is a 3 dB fixed attenuator that is used in millimeterwave systems and operates from 110 to 170 GHz. The attenuator has a fixed attenuation value of 3 dB at center frequency, 140 GHz. The attenuator’s waveguides are manufactured with precision wire EDM to ensure high accuracy and a quality internal surface finish. The design features anti-cocking flanges to reduce misalignment errors and a sandblasted surface treatment to provide a durable finish. While the attenuator is designed for full waveguide band applications, the attenuation value does show a minor slope within the band due to its distinct mechanical configuration. Other attenuation values are available under different model numbers as STA-XX-06-F1, where XX is the desired attenuation value.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $600.00
10 - 24 $540.00
25 - 49 $486.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Attenuation3 dB @ 140 GHz
Return Loss20 dB
Power Handling300 mW
RF PortWR-06 Waveguide
Attenuator TypeFixed
