4-Port Bi-directional Directional Coupler

110 to 170 GHz, 10 dB Coupling, 40 dB Directivity, WR-06 Waveguide, D-Band
SKU:SWD-1040H-06-BB
Availability:1 Week ARO

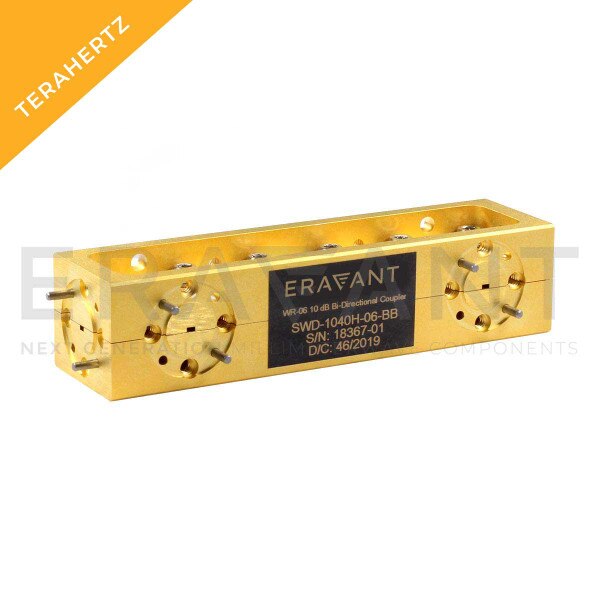

SWD-1040H-06-BB is a D band, four-port waveguide bi-directional coupler that delivers a 10 dB nominal coupling level and 30 dB minimum directivity across the full waveguide band from 110 to 170 GHz. The four-port coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-06 waveguides with UG-387/U-M anti-cocking flanges. Custom coupling levels are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,700.00
5 - 9$1,530.00
10 +$1,377.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Insertion Loss3.5 dB
Coupling10 dB
Directivity40 dB
Return Loss20 dB
Coupler Type4-Port Bi-directional, Split-block
RF PortsWR-06 WG
