WR-06 Waveguide Shim

110 to 170 GHz, 0.028" (L) Insertion Length, 28 Mils, 1/4 λg
SKU:SWI-06028-SB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

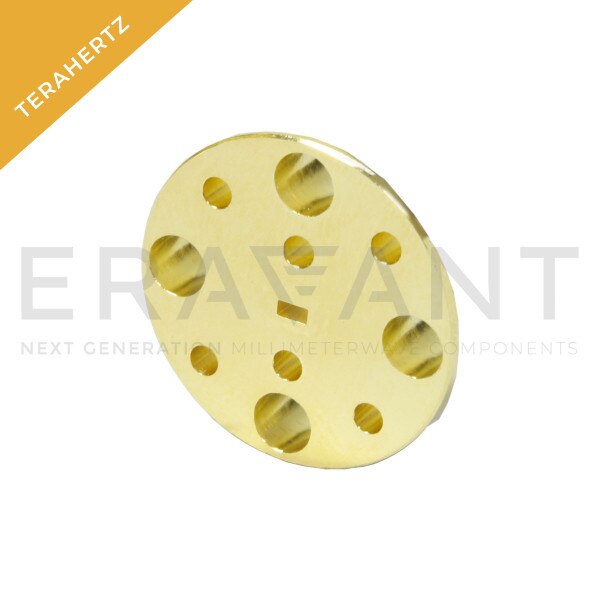

SWI-06028-SB is a 0.028" thick, 1/4 wavelength, instrumentation grade D Band waveguide spacer (shim) with WR-06 window and UG-387/U-M circular flange. The spacer is manufactured with a precision machining process to ensure high quality and ruggedness. The spacer is offered to cover the frequency range of 110 to 170 GHz.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 24 $210.00
25 - 49 $189.00
50 - 99 $170.10

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Insertion Length0.028" (L)
Mils28
WaveguideWR-06 Waveguide
