X4 Active Frequency Multiplier

110 to 150 GHz, +12 dBm Output Power, WR-06 Waveguide, D-Band
SKU:SFA-114154412-06KF-E1
Availability:3 to 5 Days ARO

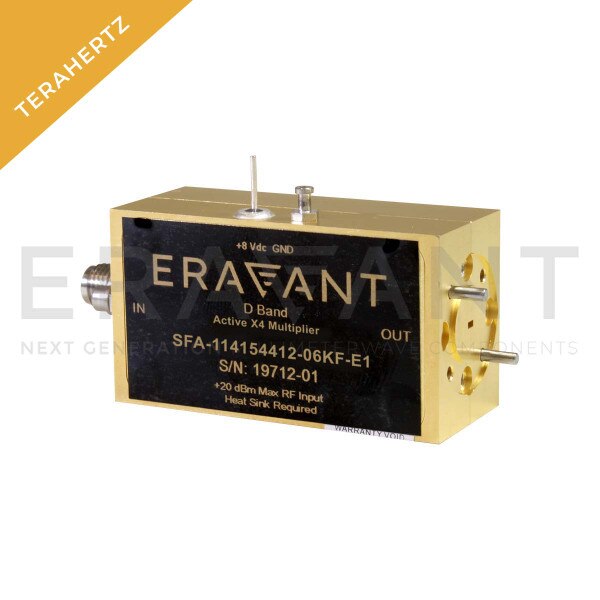

SFA-114154412-06KF-E1 is an active X4 frequency multiplier. The multiplier has an input frequency of 27.5 to 37.5 GHz with a typical input power of +3 dBm and an output frequency of 110 to 150 GHz with a typical output power of +12 dBm. The DC power requirement for the multiplier is +8 VDC/500 mA. The input port configuration is a female 2.92 mm connector and the output is a WR-06 waveguide with a UG-387/U-M anti-cocking flange. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency110 GHz
Maximum Output Frequency150 GHz
Output Power+12 dBm
Minimum Input Frequency27.5 GHz
Maximum Input Frequency37.5 GHz
Input Power+3 dBm
DC Bias+8 VDC/500 mA
Output PortWR-06 WG
Input PortSMA (F)
