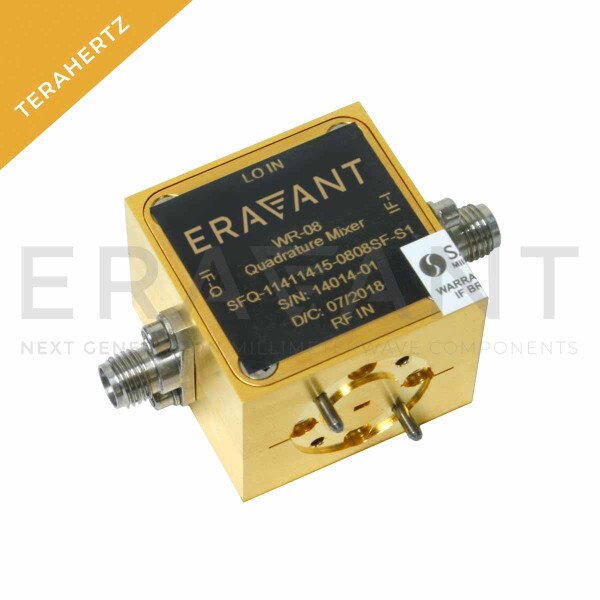

F-Band Quadrature Mixer

110 to 112 GHz, DC to 1 GHz IF, +16 dBm LO Power, WR-08 Waveguide
SFQ-11411415-0808SF-N1 is a F Band quadrature mixer that covers the frequency range of 110 to 112 GHz. The typical conversion loss of the quadrature mixer is 15 dB with an LO driving power of +16 dBm. The typical LO to RF port isolation is 30 dB. Since the IF port of the quadrature mixer is DC coupled, the mixer can be used as a phase detector. In addition, the mixer can be readily configured into an image rejection mixer or single sideband modulator by adding an IF quadrature coupler.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency110 GHz
Maximum RF Frequency112 GHz
Minimum LO Frequency110 GHz
Maximum LO Frequency112 GHz
Minimum IF FrequencyDC
Maximum IF Frequency1 GHz
LO Pumping Power+16 dBm
Conversion Loss15 dB
RF PortWR-08 Waveguide
