WR-08 Waveguide Bandpass Filter

109 to 140 GHz Passband, 40 dB Rejection from DC to 94 GHz and 145 to 160 GHz, F-Band
SKU:SWF-13432330-08-B1
Availability:1 Week ARO

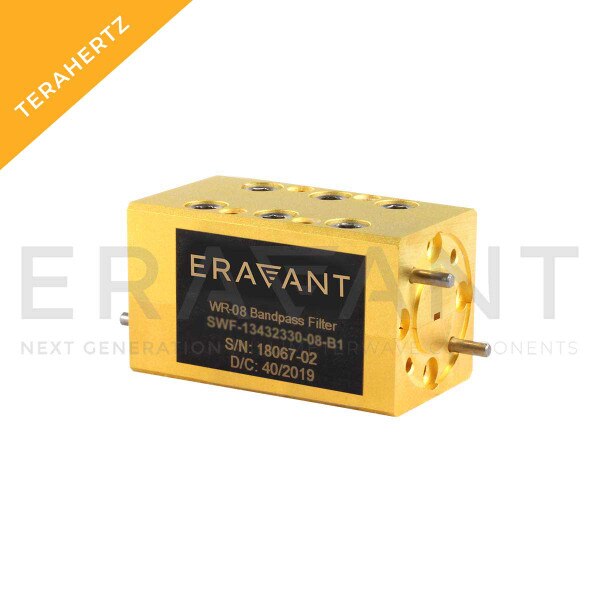

SWF-13432330-08-B1 is an F band, waveguide bandpass filter with a passband frequency of 109 to 140 GHz and rejection frequencies from DC to 94 GHz and 145 to 160 GHz. The nominal insertion loss of the bandpass filter is 2.5 dB and the typical rejection is 40 dB. Since both low end and high end cut off frequencies can be selected by modifying the design, custom designs are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$2,750.00
3 - 4$2,612.50
5 - 9$2,481.88

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency109 GHz
Maximum Passband Frequency140 GHz
Minimum Rejection Frequency, Low SideDC
Maximum Rejection Frequency, Low Side94 GHz
Minimum Rejection Frequency, High Side145 GHz
Maximum Rejection Frequency, High Side160 GHz
Rejection40 dB
Waveguide PortWR-08 Waveguide
