WR-08 Waveguide Bandpass Filter

105 to 140 GHz Passband, 40 dB Rejection from DC to 94 GHz and 145 to 180 GHz, F-Band
Availability:IN STOCKPlease contact us if you need more units than what is available online.

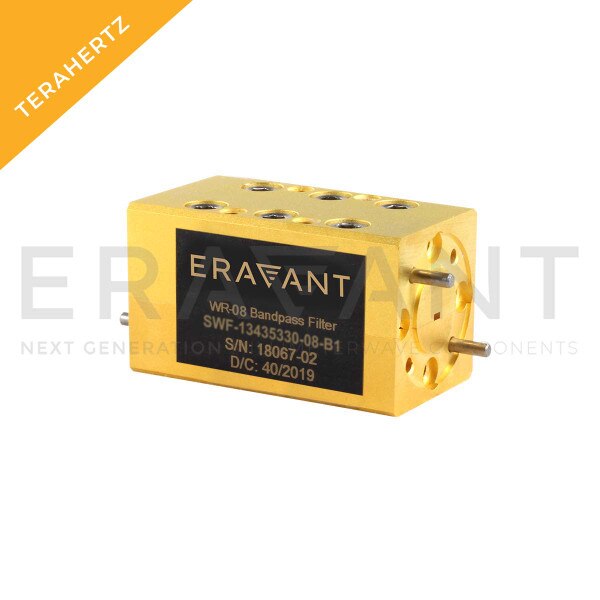

SWF-13435330-08-B1 is an F band waveguide bandpass filter with a passband frequency of 105 to 140 GHz and rejection frequencies from DC to 94 GHz and 145 to 180 GHz. The nominal insertion loss of the bandpass filter is 2.5 dB and the typical rejection is 40 dB. Since both low end and high end cut off frequencies can be selected by modifying the design, custom designs are available under different model numbers.
Login to view pricing

Technical Details

Minimum Passband Frequency105 GHz
Maximum Passband Frequency140 GHz
Minimum Rejection Frequency, Low SideDC
Maximum Rejection Frequency, Low Side94 GHz
Minimum Rejection Frequency, High Side145 GHz
Maximum Rejection Frequency, High Side180 GHz
Rejection40 dB
Waveguide PortWR-08 Waveguide
