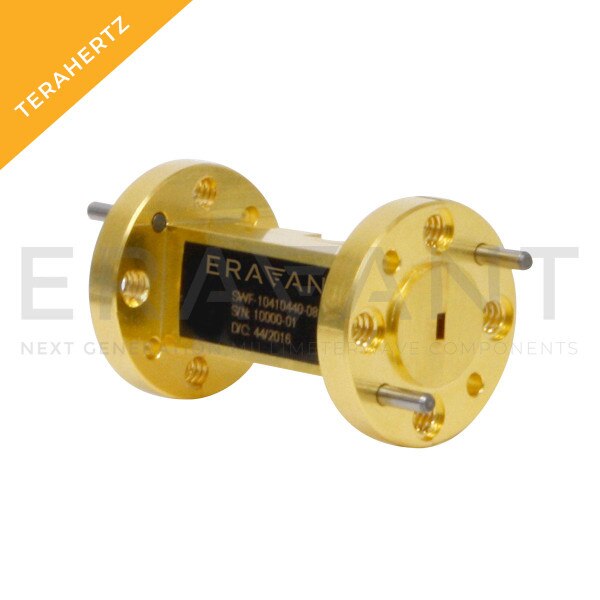

WR-08 Waveguide Highpass Filter

104 GHz and Higher Passband, 40 dB Rejection from DC to 100 GHz, F-Band
SKU:SWF-10410440-08-H1
Availability:1 Week ARO
SWF-10410440-08-H1 is an F band, waveguide highpass filter with a passband frequency of 104 GHz and higher and a rejection frequency from DC to 100 GHz. The filter provides a nominal insertion loss of 2.5 dB across its passband with a low ripple and a typical rejection of 40 dB. Since the low end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers. For quantities above 10 pieces, please contact us or call (424) 757-0168.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$2,250.00
5 - 9$2,025.00
10 - 24$1,822.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency104 GHz
Passband Insertion Loss2.5 dB
Minimum Rejection FrequencyDC
Maximum Rejection Frequency100 GHz
Rejection40 dB
Waveguide PortWR-08 Waveguide
