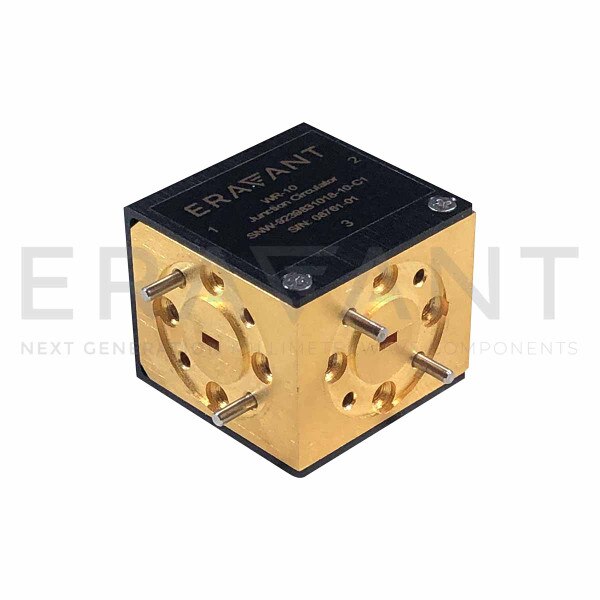

W-Band Junction Circulator

101 to 109 GHz, 18 dB Isolation, WR-10 Waveguide
SKU:SNW-1041141018-10-C1-2
Availability:4 to 6 Weeks ARO
SNW-1041141018-10-C1-2 is a W band waveguide junction circulator that covers the frequency range of 101 to 109 GHz. The waveguide junction circulator is designed and manufactured to provide a low insertion loss of 1 dB nominal, a typical isolation of 18 dB across the frequency range, and a much shorter insertion length for system integration. Isolation will generally be higher closer to the center frequency. The RF ports are WR-10 waveguides with UG-387/U-M anti-cocking flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,100.00
5 - 9 $990.00
10 - 24 $891.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency101 GHz
Maximum Frequency109 GHz
Insertion Loss1.0 dB
Isolation18 dB
Return Loss15 dB
Forward Power Handling3 W (CW) Max
Reverse Power Handling3 W (CW) Max
RF PortWR-10 Waveguide
Device TypeCirculator
