X6 Active Frequency Multiplier

100 to 113 GHz, +15 dBm Output Power, In-line WR-10 Waveguide, W-Band

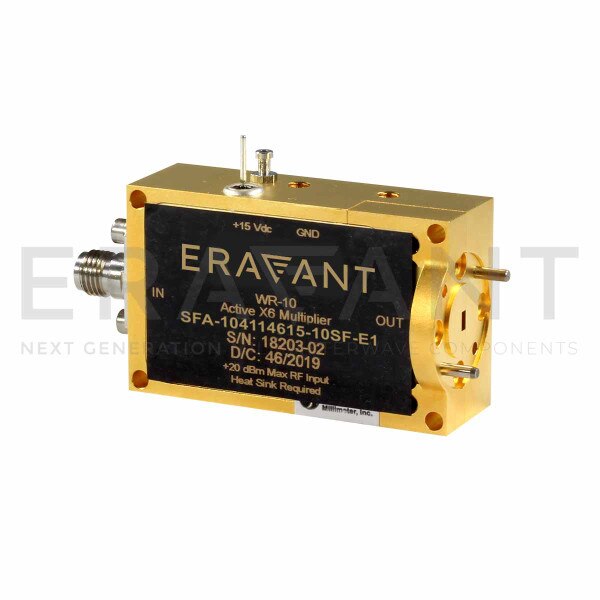

SFA-104114615-10SF-E1 is an active X6 frequency multiplier. The multiplier has an input frequency of 16.67 to 18.83 GHz with a typical input power of +3 dBm and an output frequency of 100 to 113 GHz with a typical output power of +15 dBm. The multiplier also has a typical harmonic suppression of -15 dBc. The DC power requirement for the multiplier is +8 VDC/700 mA. The input port configuration is a female SMA connector and the output is a WR-10 waveguide with a UG-387/U-M anti-cocking flange. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency100 GHz
Maximum Output Frequency113 GHz
Output Power+15 dBm
Minimum Input Frequency16.67 GHz
Maximum Input Frequency18.83 GHz
Input Power+3 dBm
DC Bias+8 VDC/700 mA
Output PortWR-10 WG
Input PortSMA (F)
