90 Degree Coaxial Hybrid Coupler

10 to 40 GHz, 2.92 mm (F) Input/Output Ports, 3 dB Coupling
Availability:IN STOCKPlease contact us if you need more units than what is available online.

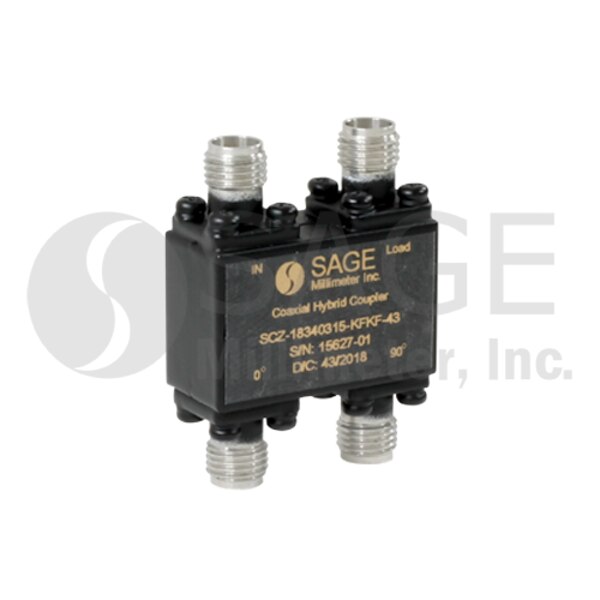

SCZ-1034031009-KFKF-43 is a coaxial 90-degree hybrid coupler that covers the frequency range of 10 to 40 GHz. The nominal coupling is 3 dB and the typical insertion loss is 2.6 dB. The typical isolation of the coupler is 10 dB. The RF connectors of the coupler are female 2.92 mm (K) connectors. The power handling of the coupler is 20 watts maximum. Other configurations, such as different connectors for input and output, are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency10 GHz
Maximum Frequency40 GHz
Insertion Loss2.6 dB
Coupling3 dB
Return Loss11 dB
Impedance50 Ohms
RF PortsK (F)
