WR-75 Orthomode Transducer

10 to 15 GHz, 40 dB Isolation, 35 dB Cross Polarization, 0.750" x 0.750" Square Waveguide Antenna Port
SKU:SAT-F7-75075-S1
Availability:4 to 6 Weeks ARO

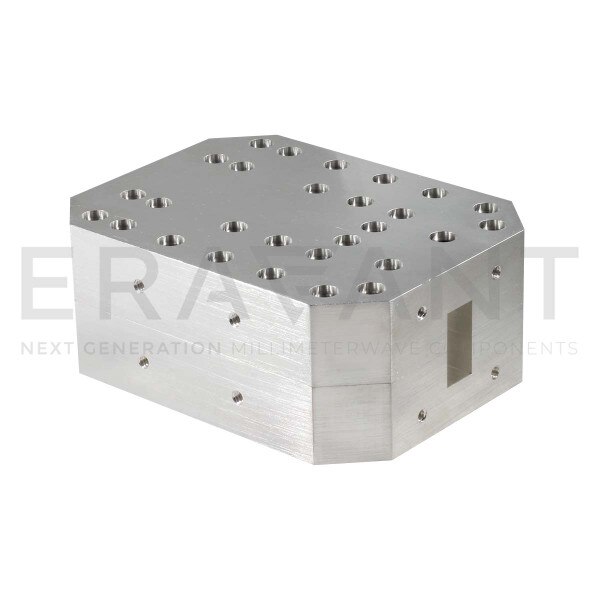

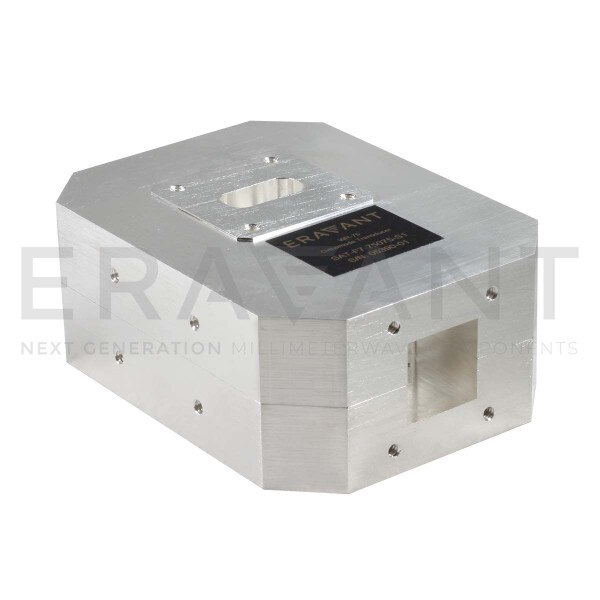

SAT-F7-75075-S1 is a full WR-75 orthomode
transducer (OMT) that operates between 10.0 and 15.0 GHz. The OMT separates a circular or elliptical polarized waveform into two linear, orthogonal waveforms or combines two linear polarized waveforms into one circular or elliptical polarized waveform or vice versa. The OMT also supports either vertical or horizontal polarized waveguide forms with 35 dB cross polarization rejections. The OMT shows high port isolation while providing a low insertion loss. The OMT is configured with a 0.750” x 0.750” square waveguide for the antenna port and two WR-75 waveguides for the horizontal and vertical ports. All ports have standard WR-75 cover flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,850.00
5 - 9 $1,665.00
10 - 24 $1,498.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency10 GHz
Maximum Frequency15 GHz
Insertion Loss, Antenna to V Port0.4 dB
Insertion Loss, Antenna to H Port0.4 dB
Isolation40 dB
Cross Polarization35 dB
Antenna Port0.750" x 0.750" Square WG
Horizontal and Vertical PortsWR-75 WG
