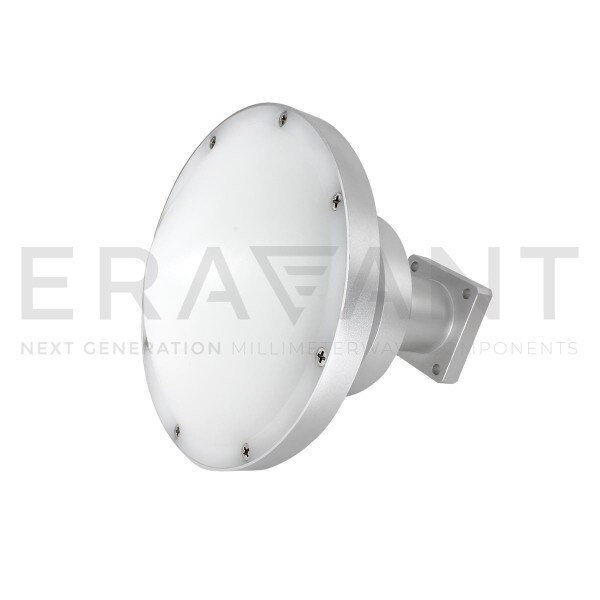

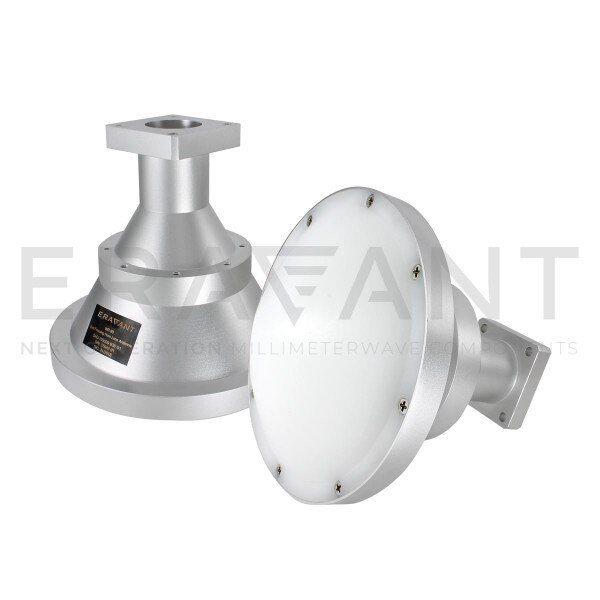

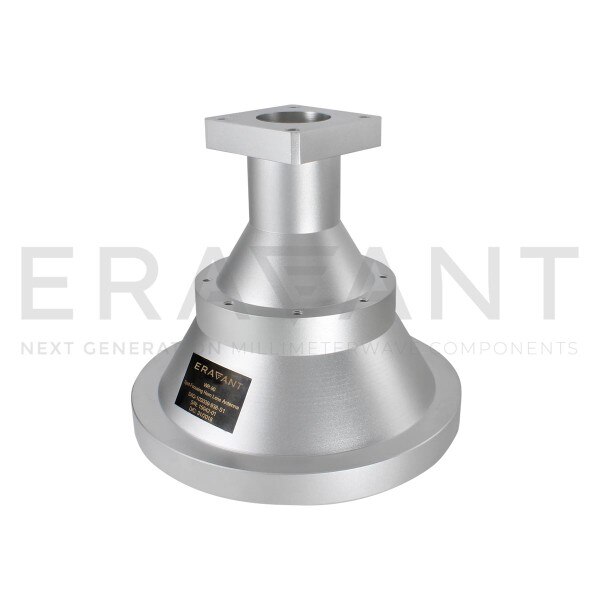

X-Band Spot-Focusing Lens Antenna

9.5 to 10.5 GHz, 3.94" Focal Length, 1.21" Spot Size, 0.938" Diameter Circular Waveguide
SKU:SAQ-103039-938-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAQ-103039-938-S1 is an X-band spot-focusing lens antenna that delivers a 3 dB spot size of 1.21" at a focal length of 3.94". The antenna employs a low loss lens to offer excellent aperture efficiency at 10 GHz. The lens antenna is equipped with a 0.938" diameter circular waveguide and UG-39/U-M flange as its input port. It supports both linear and circular polarized waveforms. For the intended application, it is recommended that customers purchase spot-focusing antennas (SAQ Series) in a pair of two (Qty. 2).
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency10 GHz
Focal Length3.94"
Spot Size1.21"
PolarizationLinear and Circular
Antenna Port0.938" Dia Circular WG
